Everlight Electronics
QTLP630C-R

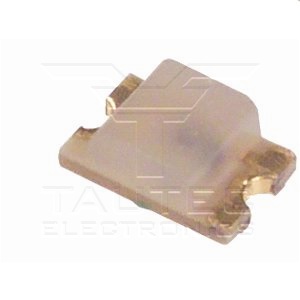

Red LED Lamp (QTLP630C-R-7957D)
Color: Red
Number of LEDs: 1
LED Material: AlGaInP
Lens Shape Type: Rectangular
Lens Dimensions (mm): 1.4x1.45x0.6
Lens Appearance: Colorless Non Diffused
Mounting Orientation: Top Mount
Intensity: 40mcd
Dominant Wavelength (nm): 624
Peak Wavelength (nm): 630
Viewing Angle (°): 140
Maximum Forward Current (mA): 30
Test Current (mA): 20
Maximum Forward Voltage per Color (V): 2.4
Reverse Voltage (V): 5
Maximum Power Dissipation (mW): 72
Minimum Operating Temperature (°C): -40
Maximum Operating Temperature (°C) 85
€
