Agilent

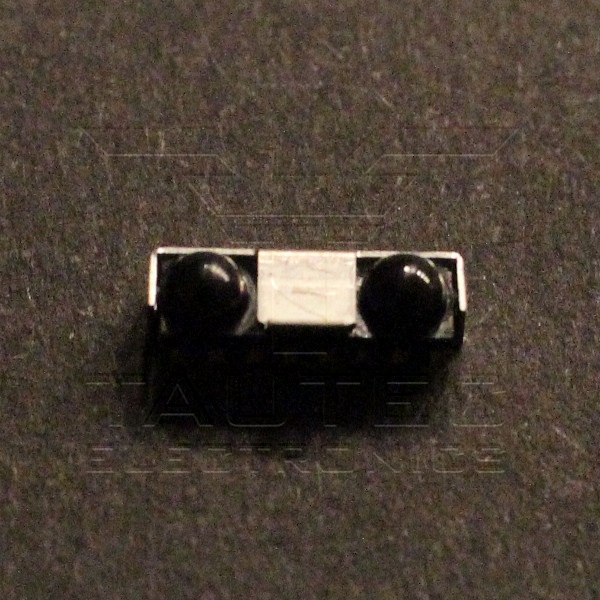

HSDL-3201#021
IrDAW Data 1.2 Low Power Compliant 115.2 kb/s Infrared Transceiver
Wavelength: 875 nm, 880 nm
Data Transmission Rate: 115.2 Kbps
Transmission Distance: 30 cm
Radiant Intensity: 9 mW/sr
Half Intensity Angle Degrees: 30 deg to 60 deg
Pulse Width: 2.45 us, 1.6 us
Rise Time: 120 ns, 600 ns
Fall Time: 80 ns, 600 ns
If - Forward Current: 32 mA
Operating Supply Voltage: 2.7 V to 3.6 V
Minimum Operating Temperature: - 25 C
Maximum Operating Temperature: + 85 C
Dimensions: 8 mm x 3 mm x 2.5 mm
Datenblatt:
HSDL-3201.pdf
€
0
.45*
Agilent

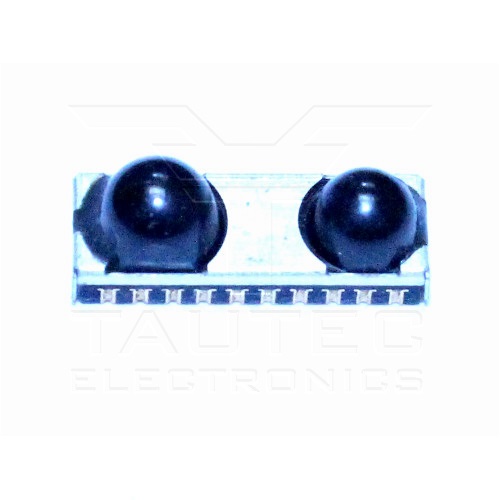

HSDL-3600#008
Beschreibung: IrDA® Compliant 4 Mb/s 3 V Infrared Transceiver
Datenblatt:
HSDL3600.pdf
€
1
.00*
Avago Technologies

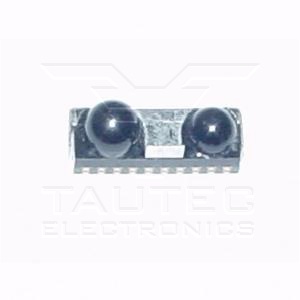

HSDL-3612-007
Beschreibung: IrDA® Data Compliant 115.2 kb/s 3 V to 5 V Infrared Transceiver
Datenblatt:
HSDL3612.pdf
€
1
.50*
Avago Technologies
HSMG-C190
Green Standard SMD LED
Package/Case: 0603 (1608 metric)
Orientation: Top View
Illumination Colour: Green
Wavelength/Colour Temperature: 572 nm
Luminous Intensity: 15 mcd
Viewing Angle: 170 deg
Lens Colour/Style: Untinted Diffused
If - Forward Current: 20 mA
Vf - Forward Voltage: 2.2 V
Power Rating: 52 mW
Length: 1.6 mm
Height: 0.8 mm
Width: 0.8 mm
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 85 C
Datenblatt:
HSMG-C190.pdf
€
0
.12*
