AS...
Alder Optomechanical Corp.

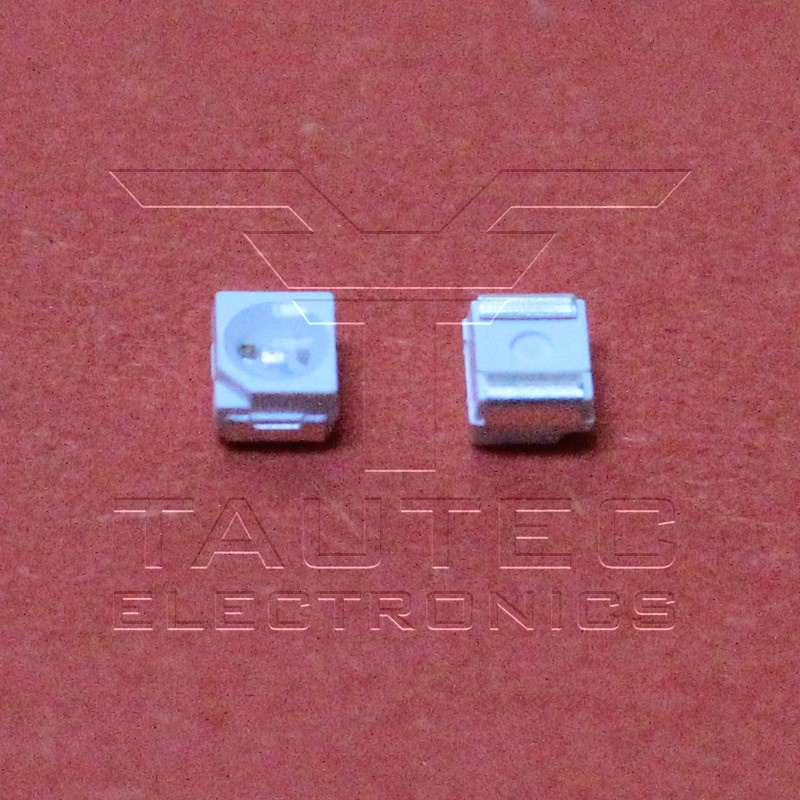

AS-3528SRA2-C2/R3-3H
Red Surface Mount ChipLED
- Power Dissipation PD 120 mW
- Forward Current(DC) IF 50 mA
- Peak Forward Current IFP 100 mA
- Thermal Resistance Rth 250 °C/W
- Operation Temperature Topr -40 ~ +100 C
- Storage Temperature Tstg -40 ~ +100 C
- Reflow Soldering Temperature Tsol 260 C for 5 seconds C
- Wavelengh: R3 (630nm-635nm)
- Iv at 20mA: 3H (600mcd - 780mcd)
Datenblatt:
AS-3528SRA2.pdf
€
0
.05*
Avago Technologies

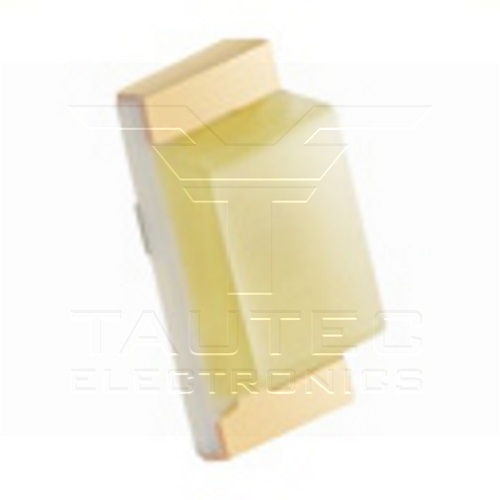

ASMT-RF45-AN002
Yellow Green 0.45mm Leadframe-Based Surface Mount ChipLED
- Industrial 0603 platform – 1.6 x 0.8 x 0.45mm
- Automotive qualified
- Super wide 145 deg viewing angle
- JEDEC MSL 2a.
- Robust Operating Temperature from - 40 to +100°C
- Junction Temperature Tj = 110°C
- Available in 4000 parts per reel
- RoHS & IR Reflow compatible
Applications
- Interior Automotive
- Navigation backlighting
- Audio panel backlighting
- Push Button backlighting
Datenblatt:
ASMT-RF45.pdf
€
0
.04*
Avago Technologies
ASMT-RR45-AQ902
Red 0.45mm Leadframe-Based Surface Mount ChipLED
- Industrial 0603 platform – 1.6 x 0.8 x 0.45mm
- Automotive qualified
- Super wide 145 deg viewing angle
- JEDEC MSL 2a.
- Robust Operating Temperature from - 40 to +100°C
- Junction Temperature Tj = 110°C
- Available in 4000 parts per reel
- RoHS & IR Reflow compatible
Applications
- Interior Automotive
- Navigation backlighting
- Audio panel backlighting
- Push Button backlighting
Datenblatt:
ASMT-RR45.pdf
€
0
.04*
