OPTOELEKTRONIK

Würth Elektronik

156125RV73000

Multi-Colour LED Product: Bi-Color LEDs Mounting Style: SMD/SMT Package/Case: 1205 (3212 metric) Illumination Colour: Red, Green Wavelength/Colour Temperature: 632 nm, 573 nm Viewing Angle: 120 deg If - Forward Current: 20 mA Vf - Forward Voltage: 2 V, 2.1 V Power Rating: 48 mW, 48 mW Lens Colour: Colorless Lens Dimensions: 1.2 mm x 1.2 mm Lens Shape: Rectangular Lens Transparency: Non-Diffused Height: 0.8 mm LED Size: 3.2 mm x 1.2 mm Length: 3.2 mm Luminous Intensity: 71 mcd to 170 mcd Maximum Operating Temperature: + 85 C Minimum Operating Temperature: - 40 C

€ 0 .15*

Everlight Electronics

16-213SURC/S530-A2/TR8

Hyper Red 0402 Package Chip LED - Compatible with automatic placement equipment - Compatible with infrared and vapor phase reflow solder process - Mono-color type. Pb Free - The product itself will remain within RoHS compliant version - Automotive: backlighting in dashboard and switch - Telecommunication: indicator and backlighting in telephone and fax - Flat backlight for LCD, switch and symbol - General use Datenblatt: 16-213SURC.pdf

€ 0 .05*

Everlight Electronics

16-213SYGC/S530-E1/TR8

Brilliant Yellow Green 0402 Package Chip LED - Compatible with automatic placement equipment - Compatible with infrared and vapor phase reflow solder process - Mono-color type - Pb Free - The product itself will remain within RoHS compliant version - Automotive: backlighting in dashboard and switch - Telecommunication: indicator and backlighting in telephone and fax - Flat backlight for LCD, switch and symbol - General use data s Datenblatt: 16-213SYGC.pdf

€ 0 .05*

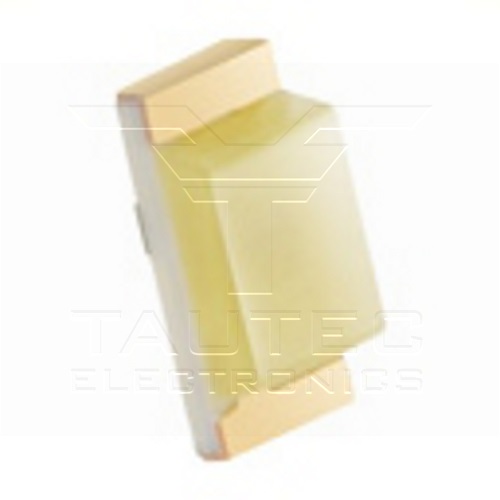

Everlight Electronics

19-213/G6C-MN1P1VZ/DT

Single Colour LEDs Vr Reverse Voltage: 5V If - Forward Current: 25 mA Pd Power Dissipation: 60mW Chip Materials: ALGaInP Color: Yellow Green Peak Wavelength: 575nm Lens Colour: Colorless Lens Dimensions: 1.2 mm x 0.8 mm Lens Shape: Rectangular Lens Transparency: Water Clear Height: 0.6 mm Length: 1.6 mm Width: 0.8 mm

€ 0 .02*

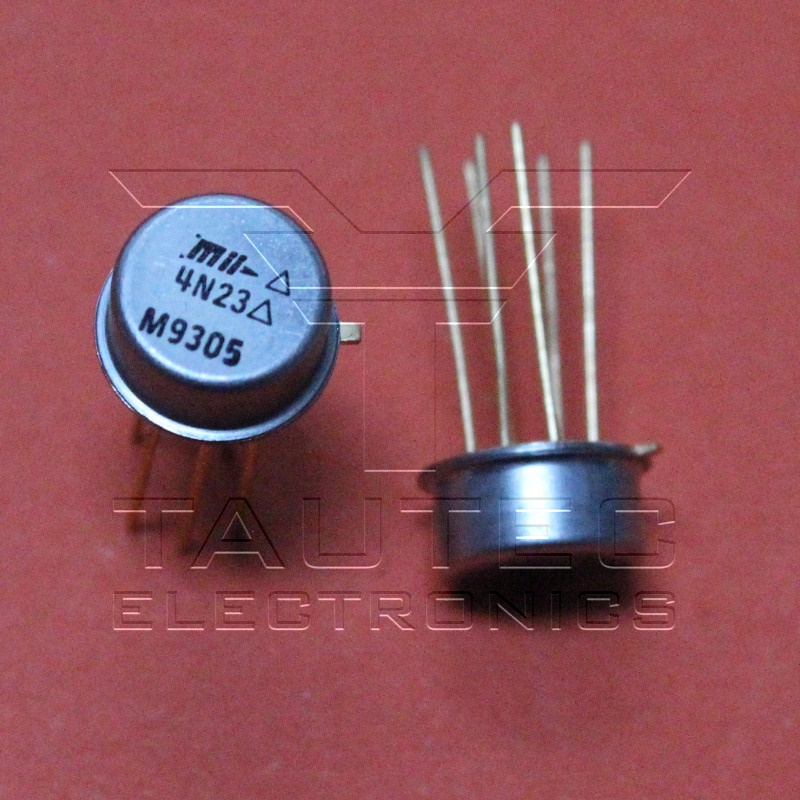

Micropac Industries

4N23

A Gallium Aluminum Arsenide (GaAlAs) infrared LED and a high gain N-P-N silicon phototransistor packaged in a hermetically sealed metal case Input to Output Voltage ±1 kV Emitter-Collector Voltage 7 V Collector-Emitter Voltage 40 V Collector-Base Voltage 45 V Reverse Input Voltage 2 V Input Diode Continuous Forward Current at (or below) 25°C Free-Air Temperature (Note 1) 40mA Peak Forward Input Current (Value applies for tw < 1 PRR < 300 pps) 1 A Continuous Collector Current 50 mA Continuous Transistor Power Dissipation at (or below) 25°C Free-Air Temperature (Note 2) 300 mW Storage Temperature -65°C to +125°C Operating Free-Air Temperature Range -55°C to +125°C Lead Solder Temperature (10 seconds max., 1/16” from case) 240°C Datenblatt: 4N23.pdf

€ 14 .00*

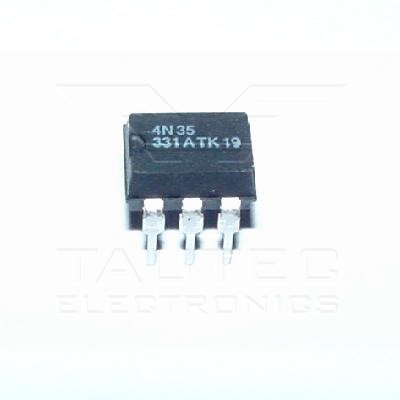

Telefunken

4N35

Beschreibung: Optocoupler, Phototransistor Output, with Base Connection Datenblatt: 4N35.pdf

€ 0 .08*

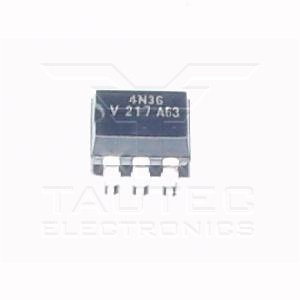

Vishay

4N36

Optocoupler, Phototransistor Output, with Base Connection Datenblatt: 4N36.pdf

€ 0 .15*

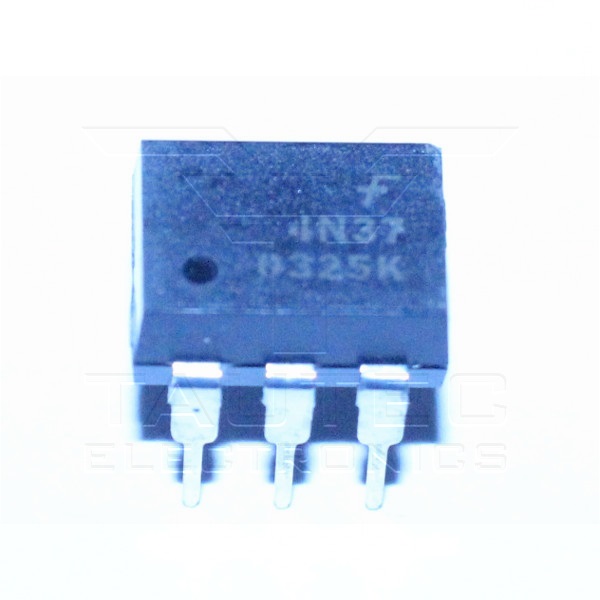

Fairchild

4N37

Optocoupler, Phototransistor Output Operating Temperature Topr -55 to +100 °C Total Device Power Dissipation: 250mW DC/Average Forward Input Current If: 100mA Reverse Input Voltage Vr= 6V Forward Current Peak If(pk)=3A LED Power Dissipation Pd=150mW Collector-Emitter Voltage Vceo=30V Collector-Base Voltage Vcbo=70V Emitter-Collector Voltage Veco=7V Input-Output Isolation Voltage: Viso=5300Vac Datenblatt: 4N37.pdf

€ 0 .12*

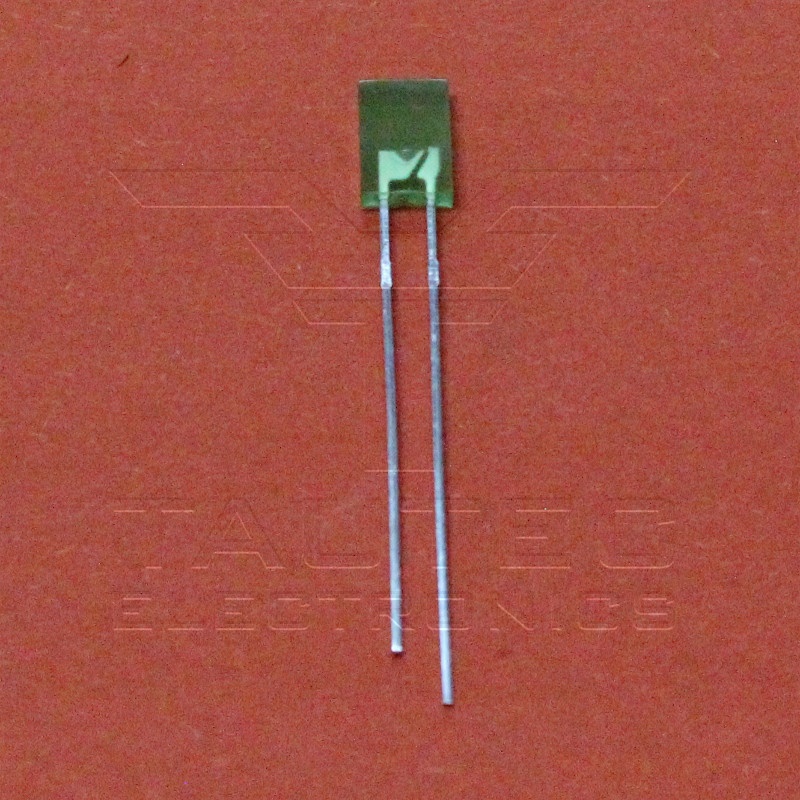

Everlight Electronics

523-2SYGD/S530-E2

2.0*5.0mm Rectangle Type Green LED Lamps Datenblatt: 523-2SYGD/S530-E2.pdf

€ 0 .04*

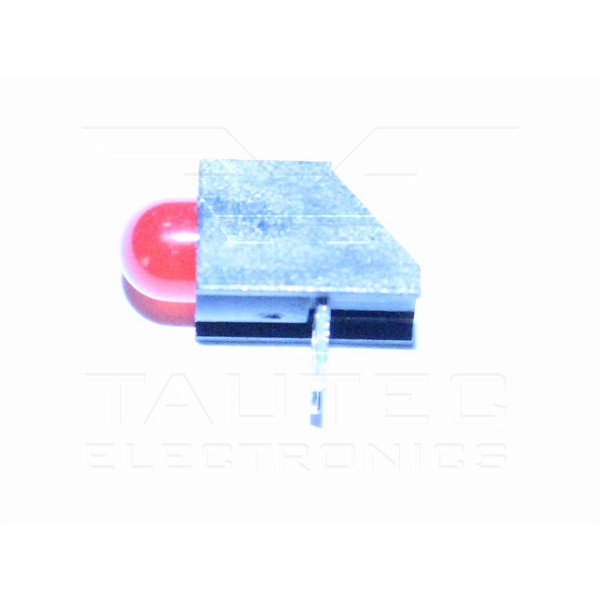

Dialight

550-0407F

Beschreibung: 5mm LED Circuit Board Indicator Sloped Back Housing With Standoffs Datenblatt: 550-Serie.pdf

€ 0 .25*

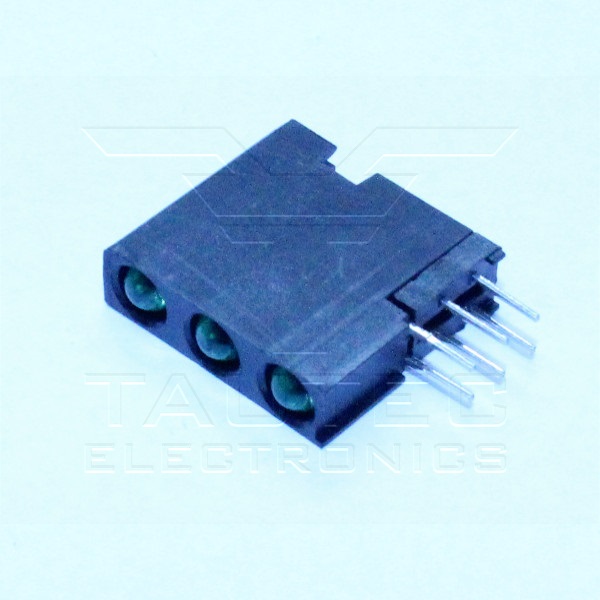

Dialight

564-2210-222F

Beschreibung: 3mm LED CBI® Circuit Board Indicator Tri-Level For Backlighting Datenblatt: 564-2210.pdf

€ 0 .80*

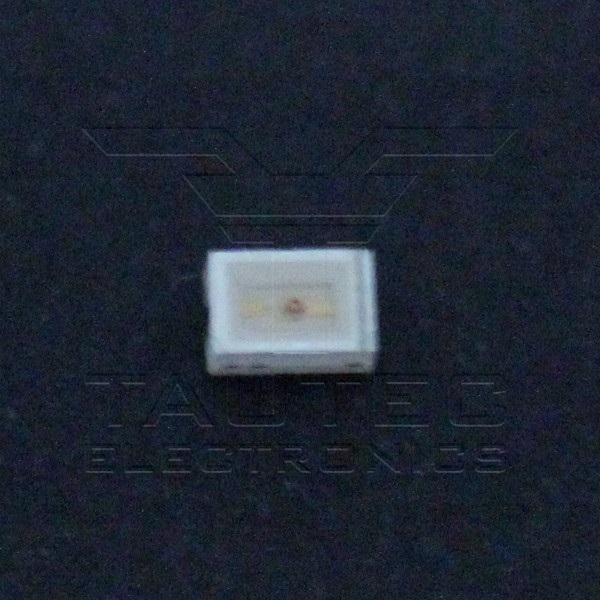

Dialight

597-3301-502F

Beschreibung: Green Standard SMD LED 1.6MM X 2.3MM - Gurtabschnitt a 20 Stück / original verpackt Datenblatt: 5973301502F.pdf

€ 0 .11*

Everlight Electronics

67-21/QK2C-B45562C4CB2/2T

Beschreibung: White 4500K-5650K Low Power LED Datenblatt: 67-21.pdf

€ 0 .05*

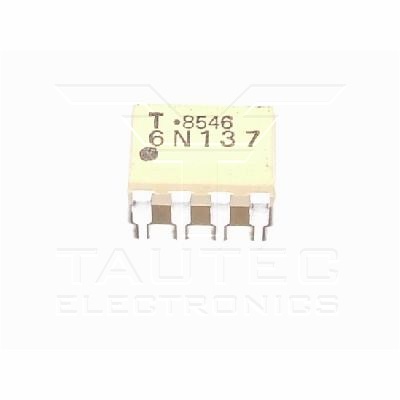

Toshiba

6N137

Low Input Current, High Gain Optocouplers - LSTTL / TTL compatible: 5V Supply - Ultra high speed: 10MBd - Guaranteed performance over temperature: 0°C to 70°C - High isolation voltage: 2500Vrms min. - UL recognized: UL1577, file no. E67349 - Forward current IF 20 mA - Pulse forward current IFP 40 mA - Reverse voltage VR 5 V - Output current IO 50 mA - Output voltage Vo 7 V - Supply voltage (1 minute maximum) VCC 7 V - Enable input voltage VEH 5.5 V - Output collector power dissipation Po 85 mW Datenblatt: 6N137.pdf

€ 0 .40*

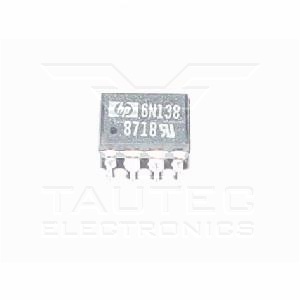

Hewlett Packard

6N138

Beschreibung: Low Input Current, High Gain Optocouplers Datenblatt: 6N138.pdf

€ 0 .50*

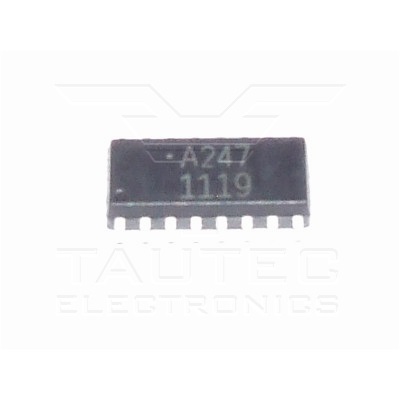

Avago Technologies

ACPL-247-500E

DC Input Multi-Channel Half-Pitch Phototransistor Optocoupler Datenblatt: ACPL-247.pdf

€ 0 .30*

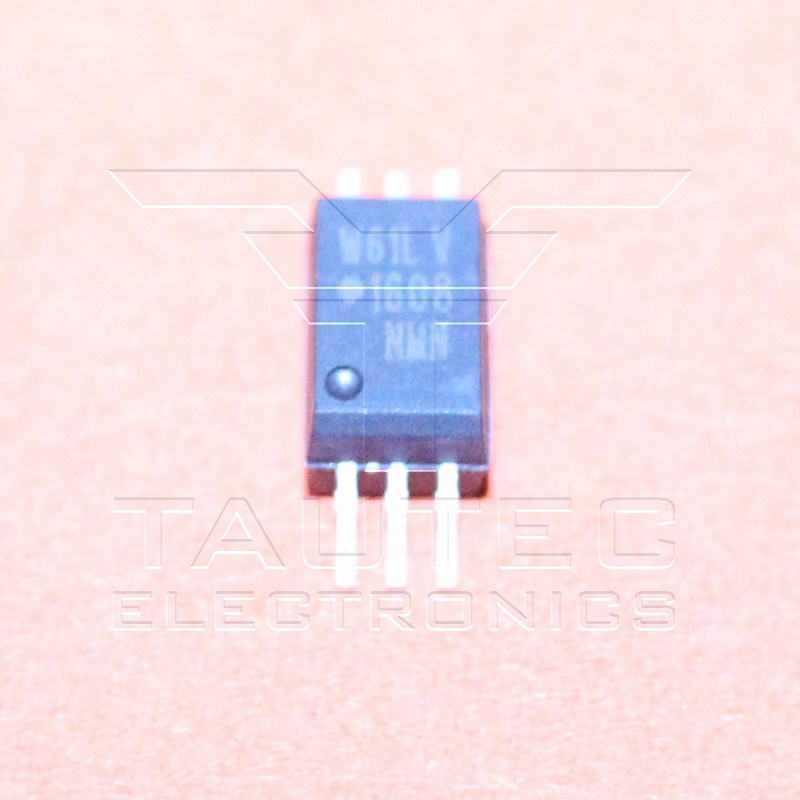

Broadcom

ACPL-W61L-560E

High Speed Optocouplers 10MBd Data Rate: 10 Mb/s Number of Channels: 1 Channel Output Type: Photo IC Isolation Voltage: 5000 Vrms Vf - Forward Voltage: 1.3 V If - Forward Current: 2 mA Vr - Reverse Voltage: 5 V Pd - Power Dissipation: 20 mW Minimum Operating Temperature: - 40 C Maximum Operating Temperature: + 105 C Datenblatt: ACPL-W61L.pdf

€ 1 .62*

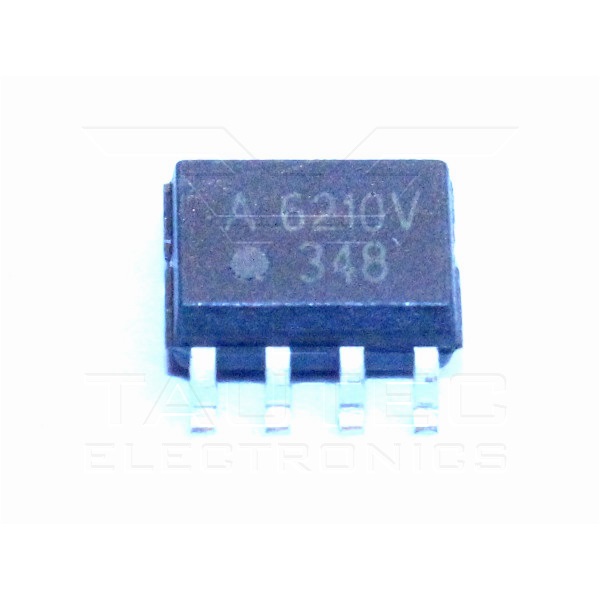

Avago Technologies

ACSL-6210-06RE

Multi-Channel and Bi-Directional, 15 MBd Digital Logic Gate Optocoupler Datenblatt: ACSL-6210.pdf

€ 1 .63*

Alder Optomechanical Corp.

AS-3528SRA2-C2/R3-3H

Red Surface Mount ChipLED - Power Dissipation PD 120 mW - Forward Current(DC) IF 50 mA - Peak Forward Current IFP 100 mA - Thermal Resistance Rth 250 °C/W - Operation Temperature Topr -40 ~ +100 C - Storage Temperature Tstg -40 ~ +100 C - Reflow Soldering Temperature Tsol 260 C for 5 seconds C - Wavelengh: R3 (630nm-635nm) - Iv at 20mA: 3H (600mcd - 780mcd) Datenblatt: AS-3528SRA2.pdf

€ 0 .05*

Avago Technologies

ASMT-RF45-AN002

Yellow Green 0.45mm Leadframe-Based Surface Mount ChipLED - Industrial 0603 platform – 1.6 x 0.8 x 0.45mm - Automotive qualified - Super wide 145 deg viewing angle - JEDEC MSL 2a. - Robust Operating Temperature from - 40 to +100°C - Junction Temperature Tj = 110°C - Available in 4000 parts per reel - RoHS & IR Reflow compatible Applications - Interior Automotive - Navigation backlighting - Audio panel backlighting - Push Button backlighting Datenblatt: ASMT-RF45.pdf

€ 0 .04*

Avago Technologies

ASMT-RR45-AQ902

Red 0.45mm Leadframe-Based Surface Mount ChipLED - Industrial 0603 platform – 1.6 x 0.8 x 0.45mm - Automotive qualified - Super wide 145 deg viewing angle - JEDEC MSL 2a. - Robust Operating Temperature from - 40 to +100°C - Junction Temperature Tj = 110°C - Available in 4000 parts per reel - RoHS & IR Reflow compatible Applications - Interior Automotive - Navigation backlighting - Audio panel backlighting - Push Button backlighting Datenblatt: ASMT-RR45.pdf

€ 0 .04*

Siemens

BP103 II

Beschreibung: Silicon NPN Phototransistor Datenblatt: BP103.pdf

€ 3 .50*

Telefunken

BPW12

Fotodiode Datenblatt: BPW12.pdf

€ 4 .00*

OSRAM Opto

BPW21

Silicon Photodiode for the Visible Spectral Range Datenblatt: BPW21.pdf

€ 5 .00*

Cree, Inc.

CLN6A-MKW

High Power LEDs - White Warm White LED - Size (mm):5.0 x 5.0 x 1.3 - Luminous Flux (lm): 51.0 - 101.8 - Color Temperatures(K): Min . (2500) / Typical (3200) - CRI: Typical CRI for Warm White is 80 - Lead-Free / RoHS Compliant - IV = 72.0lm - 85.6lm (K0) - Vf = 3.6V - 4.0V (46) - WD = Wu Datenblatt: CLN6A-MKW.pdf

€ 1 .00*

Siemens

CNY18IV

Optocoupler with Phototransistor Output Reserve voltage VR: 3 V Forward current IF: 60 mA Forward surge current IFSM: 1.5A Power dissipation PV: 100mW Collector emitter voltage VCEO 32 V Emitter collector voltage VECO 5 V Collector current IC 100 mA Power dissipation PV: 150mW Datenblatt: CNY18.pdf

€ 5 .00*

Vishay

CNY65

Optocoupler with Phototransistor Output Datenblatt: CNY65.pdf

€ 0 .45*

Temic Semiconductor

CNY75B

Beschreibung: Optocoupler with Phototransistor Output Datenblatt: CNY75B.pdf

€ 0 .15*

Kingbright

DA04-11HWA

10mm Bright Red Dual Digit Numeric Display Datenblatt: DA04-11.pdf

€ 0 .75*

OSRAM Opto

DT6-W3F-827

Beschreibung: 6 High-Flux Golden DRAGON® LED in Reihenschaltung auf flexiblem Leiterplattensubstrat Datenblatt: DT6.pdf

€ 30 .00*

OCP Optical Communication Products

DTR-1250-SM-ES-L1

Beschreibung: Gigabit Ethernet 1x9 Single Mode Transceiver Datenblatt: DTR1250SM.pdf

€ 10 .00*

Everlight Electronics

EHP-AX08B/LM01-P01

Beschreibung:High Power LED – 1W - CAT: J4 - HUE: R5 - REF: V2

€ 2 .00*

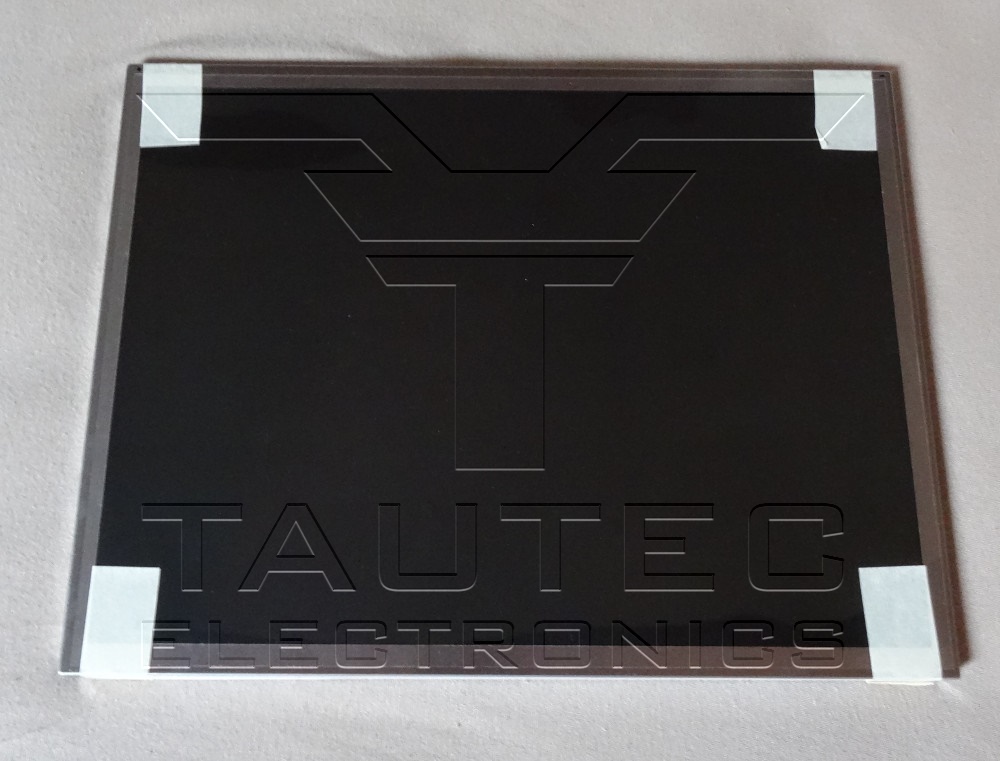

AU Optronics

G150XG01 V.2

15 TFT, XGA, 1ch LVDS Display Screen Diagonal: 15 inch Active Area: 304.128(H)mm x 228.096(V)mm Pixels H x V: 1024x3(RGB) x 768 Pixel Pitch: 0.297mm x 0.297mm Pixel Arrangement R.G.B.: Vertical Stripe Display Mode: TN, Normally White Nominal Input Voltage VDD: 3.3V typ. Typical Power Consumption: 8.8W ( 64 Gray Bar Pattern , exclude inverter) Physical Size: 326.5(H)mmx 253.5(V)mm x 12.0(D)mm Electrical Interface: 1 channel LVDS Surface Treatment: Anti-glare, Hardness 3H Support Color: 16.2M / 262K colors Temperature Range: 0C to +65C Datenblatt: G150XG01V2.pdf

€ 76 .80*

Sharp Semiconductor

GL451V

Beschreibung: Bidirectional Emission Type Infrared Light Emitting Diode Datenblatt: GL451.pdf

€ 0 .75*

Sharp Semiconductor

GP1FM313TZ0F

Beschreibung: Fiber-optic For Digital Audio Interface Datenblatt: GP1FM313TZ0F.pdf

€ 0 .60*

Sharp Semiconductor

GP1S56TJ000F

Beschreibung: Optical Switches, Transmissive, Phototransistor Output Photointerrupter Transmissive 2mm Datenblatt: GP1S56TJ000F.pdf

€ 0 .50*

Sharp Semiconductor

GP1UM283QK0F

Beschreibung: IR Remote Receiver 5V, 32.75 kHz Datenblatt: GP1UM283QK0F.pdf

€ 0 .20*

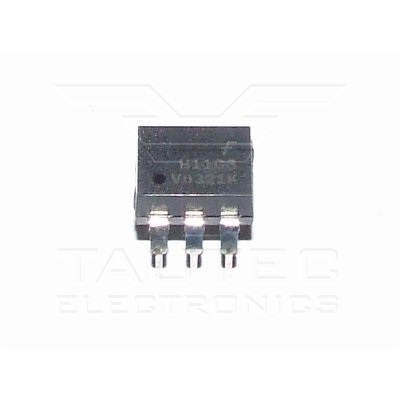

Fairchild

H11G3

High Voltage Photodarlington Optocouplers Power Dissipation: 0.35W Forward Current: 50mA Reverse Breakdown Voltage: 6V Forward Voltage: 1.5V Operating Temp Range: -55C to 100C Output Type: DC Isolation Voltage: 5300V Number of Elements: 1 Input Type: DC Datenblatt: H11G3.pdf

Varianten ab 0,70 €*

€ 0 .22*

Agilent

HCNW-2601

High CMR, High Speed TTL Compatible Optocoupler - Data Rate: 10 Mbps - Number of Channels: 1 Channel - Output Type: Open Collector - Isolation Voltage: 3750 Vrms - Vf - Forward Voltage: 1.5 V - If - Forward Current: 10 mA - Vr - Reverse Voltage: 5 V - Pd - Power Dissipation: 85 mW - Maximum Operating Temperature: + 85 C - Minimum Operating Temperature: - 40 C Datenblatt: HCNW2601.pdf

€ 0 .90*

Avago Technologies

HCNW3120-500E

2.5 Amp Output Current IGBT Gate Drive Optocoupler Number of Channels: 1 Channel Isolation Voltage: 5000 Vrms If - Forward Current: 16 mA Vf - Forward Voltage: 1.95 V Vr - Reverse Voltage: 3 V Pd - Power Dissipation: 295 mW Minimum Operating Temperature: - 40 C Maximum Operating Temperature: + 100 C

€ 1 .50*
