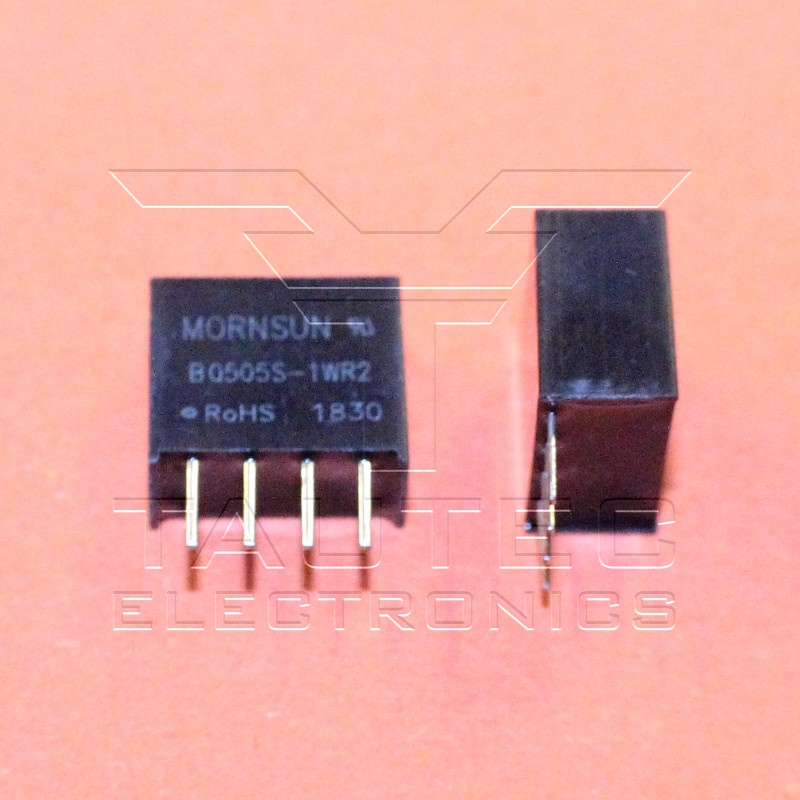

Mornsun
B0505S-1WR2
1W, Fixed Input, DC/DC Converter
Input voltage: 5V
Output voltage: 5V
Max. Isolated voltage: 1000VDC
Output Power: Max. 1W
Line regulation: Max.: 1.2%
Load regulation: Max.: 10%
Temperature Drift factor: Max. ±0.03 %/?
Ripple and Noise: Max. 100 mV
Switching frequency: 100 KHz
Datenblatt:
B0505S.pdf
€
1
.77*

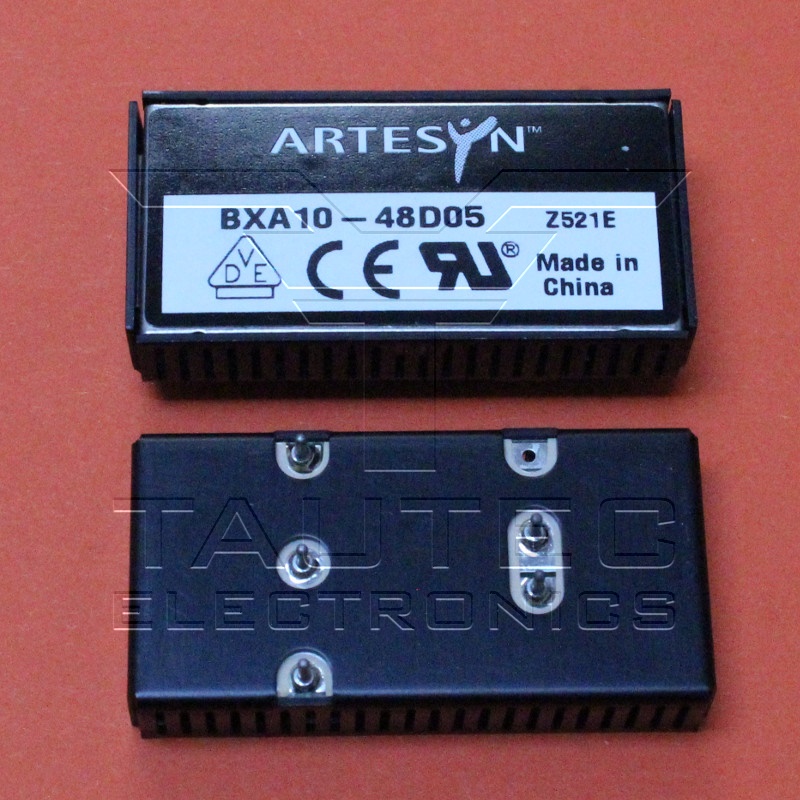

Artesyn
BXA10-48D05
Isolated DC/DC Converters 10W / 5V / 1A
Number of Outputs: 2 Output
Output Power: 10 W
Input Voltage, Nominal: 48 V
Input Voltage, Min: 18 V
Input Voltage, Max: 75 V
Output Voltage-Channel 1: 5 V
Output Current-Channel 1: 1 A
Output Voltage-Channel 2: - 5 V
Output Current-Channel 2: - 1 A
Isolation Voltage: 1.5 kV
Efficiency: 82 %
Dimensions: 50.8 mm x 25.4 mm x 10.03 mm
Datenblatt:
BXA10.pdf
€
38
.00*

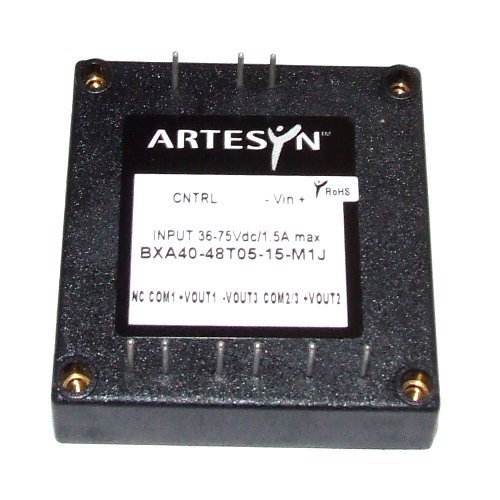

Artesyn
BXA40-48T05-15-M1J
DC-DC Converter
- Input: 36V - 75VDC / 1.5AMax.
- Output: 1x5V / 1x+-15V
Datenblatt:
BXA40.pdf
€
50
.00*
