KONVERTER / FILTER

Würth Elektronik

150066SV74000

Standard LEDs Product: Bi-Color LEDs Package/Case: 0606 (1616 metric) Orientation: Top View Illumination Colour: Red, Green If - Forward Current: 30 mA Vf - Forward Voltage: 2 V Wavelength/Colour Temperature: 645 nm, 570 nm Luminous Intensity: 18 mcd to 55 mcd Viewing Angle: 130 deg Power Rating: 72 mW, 72 mW Length: 1.6 mm Height: 0.7 mm Width: 1.6 mm Minimum Operating Temperature: - 40 C Maximum Operating Temperature: + 85 C

€ 0 .20*

Echelon

50051R

Complete LonWorks® transformer-isolated, free topology communication transceiver Data Communications Type: Differential Manchester codin Network Polarity: Polarity insensitive Isolation: 0-60Hz, 60 seconds 1000Vrms Input Supply Voltage: +5VDC +-5% Transmission Speed: 78 kilobits per second Clock Rates: Automatically detects 5, 10, or 20MHz EMI: Designed to comply with FCC Part 15 Level B and EN55022 Level B ESD: Designed to comply with IEC1000-4-2, Level 4 data sheet: FTT-10A.pdf

€ 67 .70*

tyco

660A1S2

Beschreibung: DC-DC Converter - Input: 36V - 75VDC / 20W - Output: 1x5V

€ 14 .50*

Würth Elektronik

749090020

Pulse Transformers WE-LAN 1000Base-T Turns Ratio: 1:1 Mounting Style: SMD/SMT Length: 15.1 mm Width: 7.1 mm Height: 4.25 mm Isolation Voltage: 1.5 kV Maximum Operating Temperature: + 85 C Minimum Operating Temperature: - 40 C

€ 2 .00*

Aimtec

AM1L-0505S-NZ

DC/DC Converter Type of converter: DC/DC Power: 1W Input voltage: 5V Output voltage: 5V DC Output current: 200mA Efficiency: 75% Operating temperature: -40...85C Temperature coefficient: 0.03ppm/C Switching frequency: 100kHz Input voltage tolerance: +-10% Output voltage tolerance: +-5% Output ripple: 150mVpp Insulation voltage: 1kV DC Min. insulation resistance: 1000M?

€ 2 .80*

GE Power Electronics Inc

APTH003A0X-SRZ

PicoTLynxTM 3A: Non-Isolated DC-DC Power Modules Product: Non-Isolated / POL Number of Outputs: 1 Output Output Power: 11 W Input Voltage, Min: 2.4 V Input Voltage, Max: 5.5 V Output Voltage-Channel 1: 0.6 V to 3.63 V Output Current-Channel 1: 3 A Minimum Operating Temperature: - 40 C Maximum Operating Temperature: + 85 C Datenblatt: APTH003A0X.pdf

€ 10 .33*

GE Power Electronics Inc

ATH010A03X3-SRZ

Beschreibung: Non-Isolated DC/DC Converters 2.4-5.5Vdc Input 10A 0.75-3.63Vdc Output Datenblatt: ATH010A03X3.pdf

€ 7 .00*

General Electric

AXH010A0G9-SR

Beschreibung: Austin LynxTM SMT Non-isolated Power Modules Datenblatt: AXH010.pdf

€ 8 .00*

Mornsun

B0505S-1WR2

1W, Fixed Input, DC/DC Converter Input voltage: 5V Output voltage: 5V Max. Isolated voltage: 1000VDC Output Power: Max. 1W Line regulation: Max.: 1.2% Load regulation: Max.: 10% Temperature Drift factor: Max. ±0.03 %/? Ripple and Noise: Max. 100 mV Switching frequency: 100 KHz Datenblatt: B0505S.pdf

€ 1 .77*

Artesyn

BXA10-48D05

Isolated DC/DC Converters 10W / 5V / 1A Number of Outputs: 2 Output Output Power: 10 W Input Voltage, Nominal: 48 V Input Voltage, Min: 18 V Input Voltage, Max: 75 V Output Voltage-Channel 1: 5 V Output Current-Channel 1: 1 A Output Voltage-Channel 2: - 5 V Output Current-Channel 2: - 1 A Isolation Voltage: 1.5 kV Efficiency: 82 % Dimensions: 50.8 mm x 25.4 mm x 10.03 mm Datenblatt: BXA10.pdf

€ 38 .00*

Artesyn

BXA40-48T05-15-M1J

DC-DC Converter - Input: 36V - 75VDC / 1.5AMax. - Output: 1x5V / 1x+-15V Datenblatt: BXA40.pdf

€ 50 .00*

Coil Technology Corporation

CH-0505

Beschreibung: DC-DC Converter - Input: 5,0V - Output: 5,0V / 250mA data sheet: CH-0505.pdf

€ 9 .00*

Anaren Microwave

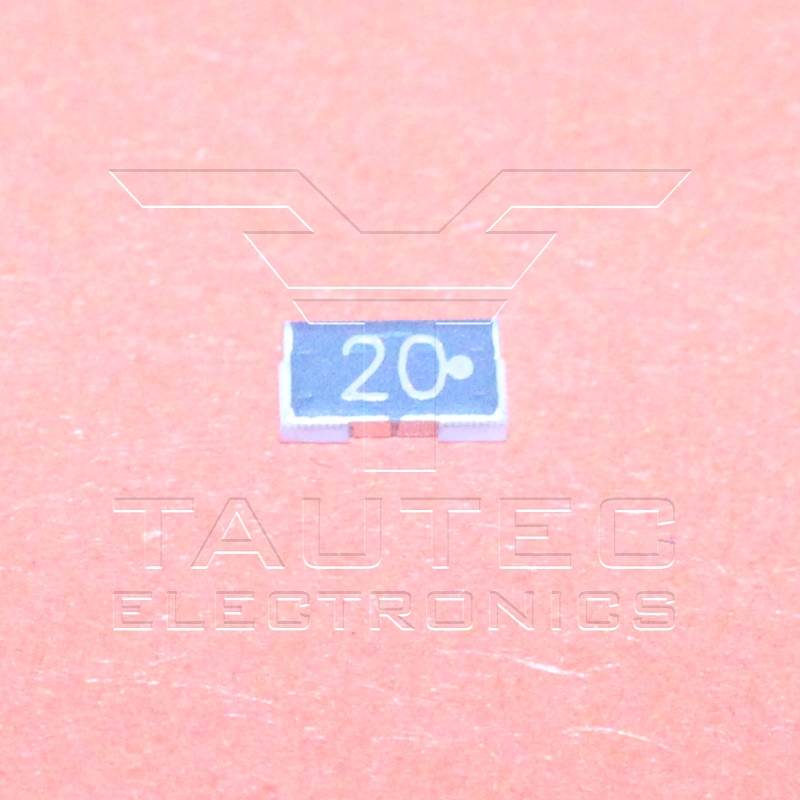

D10AA20Z4

Attenuators 3.0GHz Attn 20dB 10 Watts Package/Case: 5 mm x 2.5 mm Maximum Attenuation: 20 dB Maximum Frequency: 3 GHz Impedance: 50 Ohms Maximum VSWR: 1.25:1 Power Rating: 10 W Tolerance: 0.5 dB Minimum Operating Temperature: - 55 C Maximum Operating Temperature: + 125 C Datenblatt: D10AA20Z4.pdf

€ 2 .20*

Murata Manufacturing Co., Ltd.

DSS9NC51H223Q55B

EMI Filter, 22000pF 50/-20%, Radial, 7A/50VDC Datenblatt: DSS9.pdf

€ 0 .12*

CINCON

EC3A01H

Isolated DC/DC Number of Outputs: 1 Output Input Voltage: 4.5 V to 6 V Efficiency: 75 % Output Power: 3 W Output Voltage-Channel 1: 5 V Output Current-Channel 1: 600 mA Isolation Voltage: 3 kV Minimum Operating Temperature: - 25 C Maximum Operating Temperature: + 71 C Mounting Style: Through Hole Length: 31.8 mm Width: 20.3 mm Height: 10.2 mm Datenblatt: EC3A01H .pdf

€ 7 .57*

CINCON

EC3AB12H

3 Watt DC-DC Converter - Input: 9-18 VDC - Output: 1x12VDC / 250mA Datenblatt: EC3AB12H.pdf

€ 10 .44*

Traco Power

ESP18-15SN

Beschreibung: 18W AC/DC Converter, Input: 115V-230VAC, Output: +-15V/1200mA Datenblatt: ESP18-15SN.pdf

€ 60 .00*

Frontek Co. Ltd

FIF1742-57A

Beschreibung: TFT LCD BACKLIGHTING INVERTER Datenblatt: FIF1742-57A.pdf

€ 20 .00*

Timonta

FPF2-40-1/a

Beschreibung: EMC-Power Line Filters for 1-Phase Systems - 250VAC, 50/60Hz, 1A - 2x30mH; 47nF(X); 2x2,2nF(Y) - Schurter Bestellnummer: 5500.2163 Datenblatt: FPP2.pdf

€ 10 .00*

Timonta

FPP2-45-6,5/b

Beschreibung: EMC-Power Line Filters for 1-Phase Systems - 250VAC, 50/60Hz, 6,5A - 2x1mH; 01µF(X2); 2x2,2nF(Y) - Schurter Bestellnummer: 5500.2019 Datenblatt: FPP2.pdf

€ 3 .50*

Murata Manufacturing Co., Ltd.

HPR100WC

0.75 Watt Single Output DC/DC Converter - Input: 5V - Output: 1x5V / 150mA Datenblatt: HPR100WC.pdf

€ 35 .00*

ERG Endicott Research Group, Inc

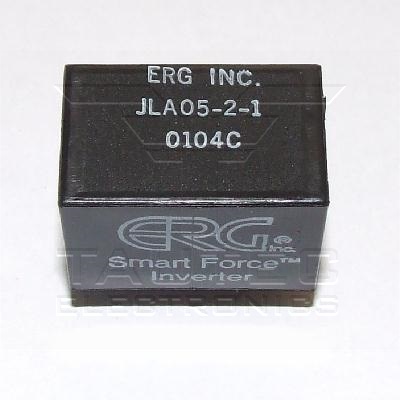

JLA05-2-1

Smart Forcetm DC to AC Inverters Datenblatt: JLA05-2-1.pdf

€ 5 .00*

NXP

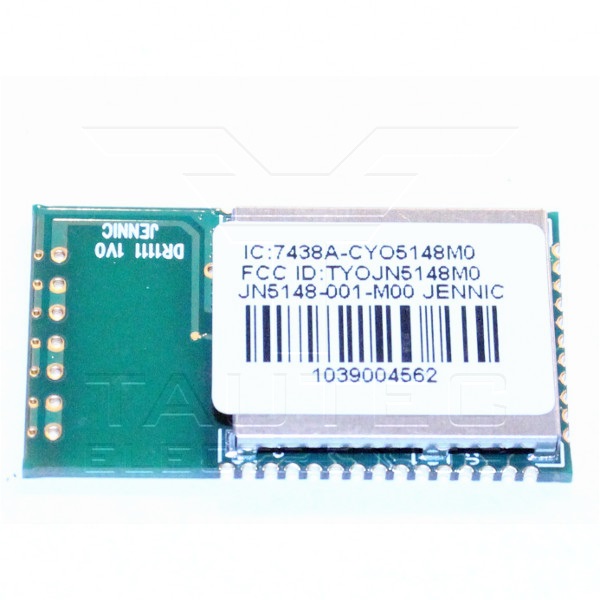

JN5148-001-M00

Beschreibung: JenNet, ZigBee PRO and IEEE802.15.4 Module Datenblatt: JN5148.pdf

€ 14 .50*

C&D Technologies

LME1205DC

Beschreibung: Isolated 250mW Single Output DC/DC Converters - Input: 12V - Output: +5V / 50mA Datenblatt: LME1205DC.pdf

€ 3 .50*

Datel

LSN-1.2/10-D12J-C

Beschreibung: Single Output, Non-Isolated, 12VIN, 1-5VOUT, 10A, DC/DC's in SIP Packages data sheet: LSN-1.2/10-D12J-C.pdf

€ 20 .00*

Murata Manufacturing Co., Ltd.

LSN-1.5/10-D3-C

Beschreibung: Single Output, Non-Isolated, 3.3VIN, 1-2.5VOUT, 10A, DC/DC's in SIP Packages data sheet: LSN-1.5/10-D3-C.pdf

€ 20 .00*

Lucent

LW010F1

Beschreibung: DC-DC Converter - Input: 36V - 75VDC / 10W - Output: 1x3,3V / 2,42A Datenblatt: LW010F1.pdf

€ 14 .50*

tyco

LW020A873

Beschreibung: DC-DC Converter - Input: 36V - 75VDC / 20W - Output: 1x5V Datenblatt: LW020.pdf

€ 15 .00*

Coil Technology Corporation

M2WR-1212D

Beschreibung: DC-DC Converter - Input: 12V - Output: +-12V / +-42mA data sheet: M2WR-1212D.pdf

€ 9 .00*

Coil Technology Corporation

M2WR-2405

Beschreibung: 2W DC-DC Converter - Input: 18 - 36VDC - Output: 5V / 500mA data sheet: M2WR-2405.pdf

€ 10 .00*

Lineage Power

MC010CL

DC/DC Converter, 10W, Input: 18VDC-36VDC, Output: +-15VDC Small size: 50.8 mm x 40.6 mm x 12.7 mm Operating ambient temperature range: –40 °C to +85 °C High reliability Input-to-output isolation Overcurrent protection Output overvoltage protection Input undervoltage lockout Operating Input Voltage: 18V - 36V Output Voltage: +15V and -15V Output Current: 0.03A - 0.33A Output Power: 10W

€ 18 .00*

Coil Technology Corporation

MDH-0512D

Beschreibung: Dual 2W DC-DC Converter - Input: 5V - Output: +-12V / 83mA Datenblatt: MDH-0512D.pdf

€ 10 .00*

Coil Technology Corporation

MS-0515D

Beschreibung: Dual DC-DC Converter - Input: 5V - Output: +-15V / 66mA data sheet: MS-0515D.pdf

€ 9 .00*

Coil Technology Corporation

MS-3.315D

Beschreibung: 1W Dual DC-DC Converter - Input: 3,3V - Output: +-15V / 66mA data sheet: MS-3.315D.pdf

€ 10 .00*

Coil Technology Corporation

MSL-3.305

Beschreibung: 2 Watt DC-DC Converter - Input: 3,3VDC - Output: 1x5VDC / 400mA Datenblatt: MSL-3.305.pdf

€ 5 .00*

Coil Technology Corporation

MSL-3.33.3-LF

DC-DC Converter - Input: 3,3V - Output: 3,3V / 606mA Datenblatt: MSL-3333-LF.pdf

€ 1 .90*

Coil Technology Corporation

MSM-0505

1 Watt DC-DC Converter - Input: 5VDC - Output: 1x5VDC / 200mA Datenblatt: MSM-0505.pdf

€ 5 .00*

Coil Technology Corporation

MSM-0515

Beschreibung: 1 Watt DC-DC Converter - Input: 5VDC - Output: 1x15VDC / 66mA Datenblatt: MSM-0515.pdf

€ 7 .00*

Murata Manufacturing Co., Ltd.

NME1205SC

Beschreibung: Isolated 1W Single Output DC/DC Converters - Input: 12V - Output: 1x5V / 200mA Datenblatt: NME1205SC.pdf

€ 5 .00*

Murata Manufacturing Co., Ltd.

NME1212SC

Isolated 1W Single Output DC/DC Converters - Input: 12V - Output: 1x12V / 83mA Datenblatt: NME1205SC.pdf

€ 4 .00*
