H...

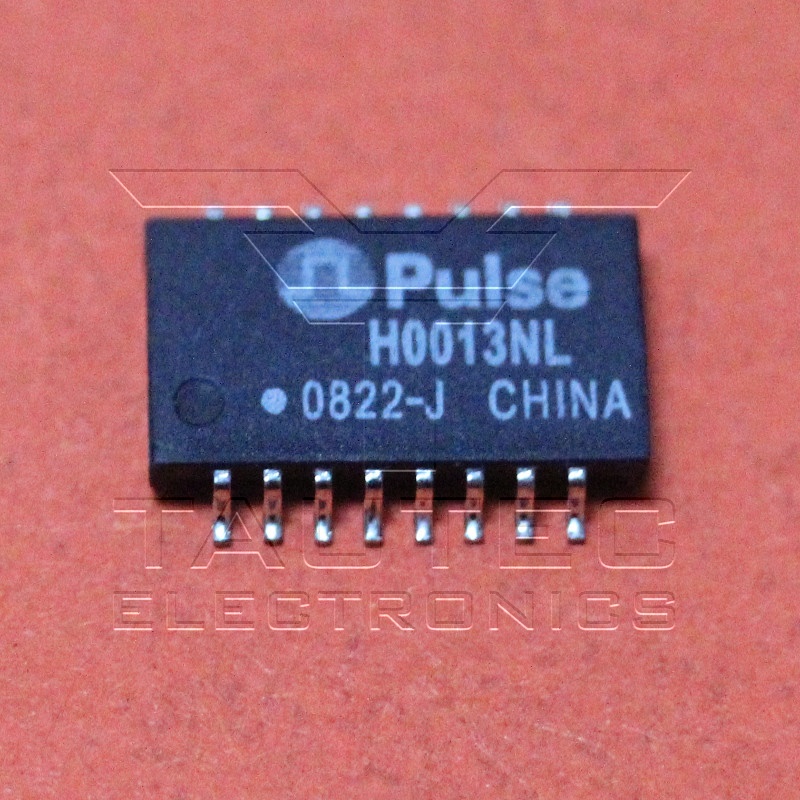

Pulse Electronics
H0013NL
Signal Transformers 10/100Base
Frequency Range: 100 kHz to 100 MHz
Inductance: 350 uH
Isolation Voltage: 1.5 kV
Minimum Operating Temperature: 0 C
Maximum Operating Temperature: + 70 C
Number of Channels: 1 Channel
Application: 10/100 PC Card
Length: 12.7 mm
Width: 9.65 mm
Height: 1.98 mm
Datenblatt:
H0013NL.pdf
€
1
.75*

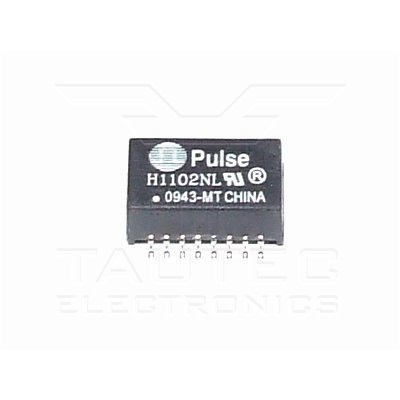

Pulse Electronics
H1102NLT
10/100BASE-T Single Port Surface Mount Magnetics With Various Turns Ratios
Frequency Range: 100 kHz to 100 MHz
Inductance: 350 uH
Isolation Voltage: 1.5 kV
Minimum Operating Temperature: 0 C
Maximum Operating Temperature: + 70 C
Number of Channels: 1 Channel
Application: 100 Base-TX
Length: 12.7 mm
Width: 9.53 mm
Height: 6.09 mm
Datenblatt:
H1102NLT.pdf
€
0
.40*
