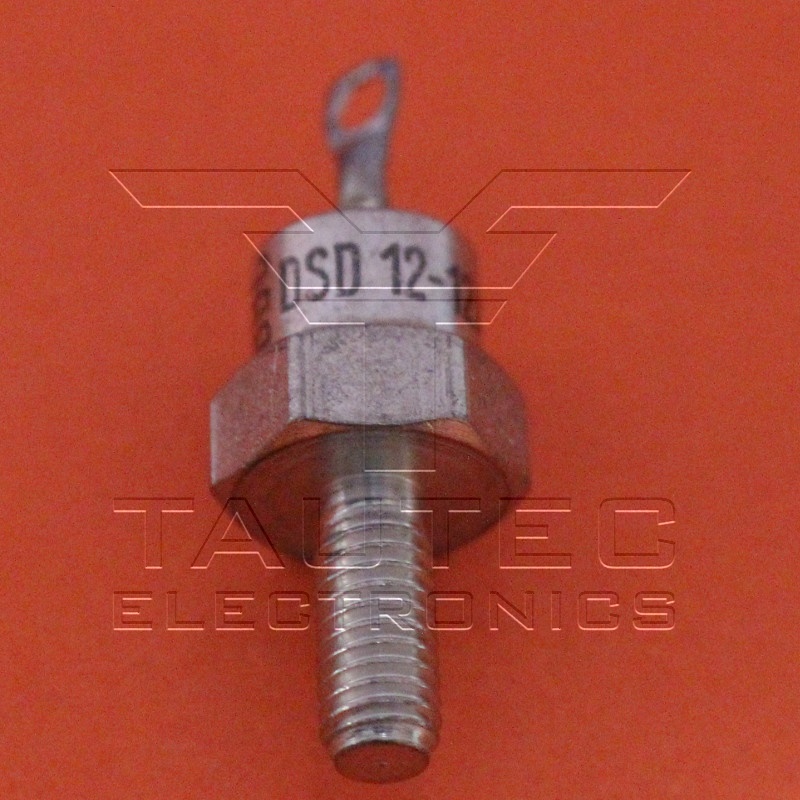

BBC Semiconductor
DSD12-12A
Avalanche Diode 1200V / 12A
Repetitive Reverse Voltage Vrrm Max: 1.2kV
Forward Current If(AV): 12A
Forward Voltage VF Max: 1.36V
Diode Case Style: DO-203AA
Diode Configuration: Single
Diode Type: Standard Rectifier
Forward Surge Current Ifsm Max: 400A
No. of Pins: 2
Operating Temperature Max: 180°C
Operating Temperature Min: -40°C
Datenblatt:
DSD12.pdf
€
7
.00*

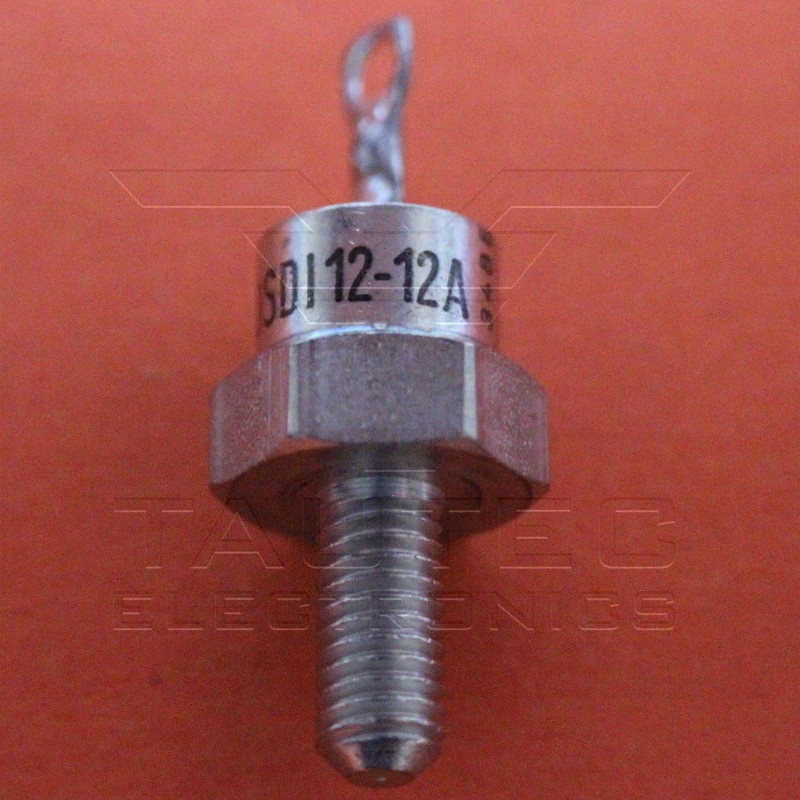

BBC Semiconductor
DSDI12-12A
Avalanche Diode 1200V / 12A
Repetitive Reverse Voltage Vrrm Max: 1.2kV
Forward Current If(AV): 12A
Forward Voltage VF Max: 1.36V
Diode Case Style: DO-203AA
Diode Configuration: Single
Diode Type: Standard Rectifier
Forward Surge Current Ifsm Max: 400A
No. of Pins: 2
Operating Temperature Max: 180°C
Operating Temperature Min: -40°C
Datenblatt:
DSDI12.pdf
€
7
.00*

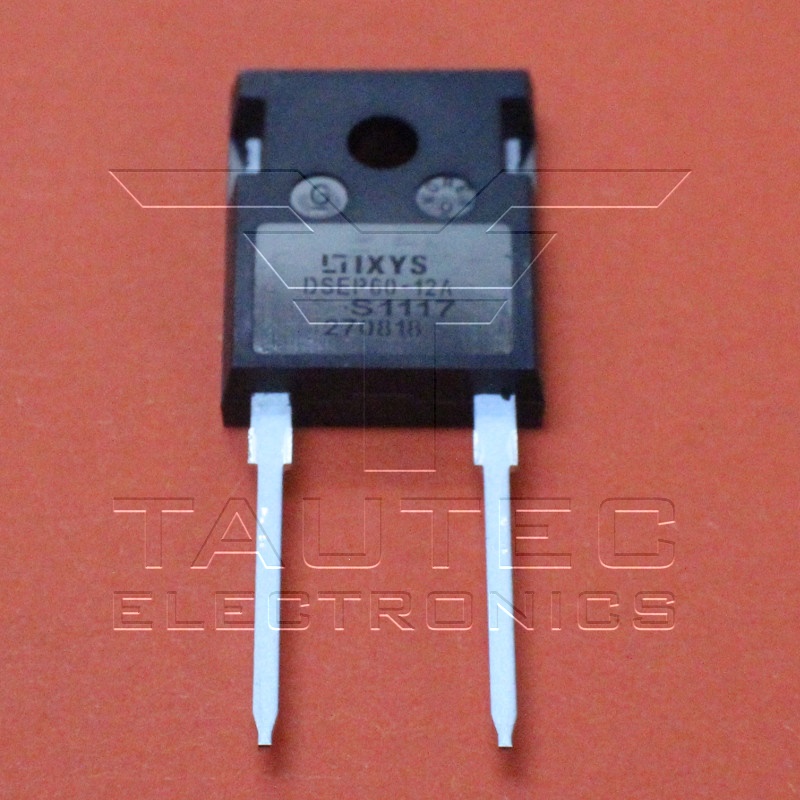

IXYS
DSEP60-12A
High Performance Fast Recovery Diode 1200V 60A
Vr - Reverse Voltage: 1200 V
If - Forward Current: 60 A
Pd - Power Dissipation: 230 W
Configuration: Single
Vf - Forward Voltage: 2.66 V
Max Surge Current: 500 A
Ir - Reverse Current: 650 uA
Recovery Time: 40 ns
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 175 C
Datenblatt:
DSEP60-12A.pdf
€
3
.52*
