B...

Diodes Inc.

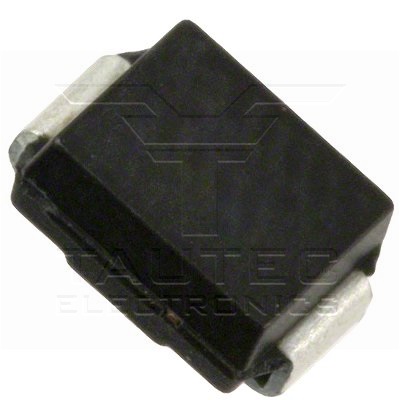

B130B-13

Description: Schottky Barrier Rectifiers 30V / 1A Datenblatt: B130B.pdf

€ 0 .08*

Temic Semiconductor

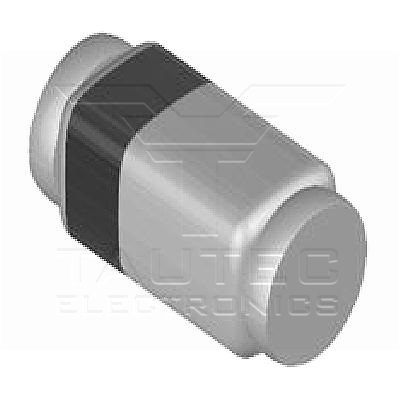

BA979-GS08

Beschreibung: RF PIN Diode Datenblatt: BA979.pdf

€ 0 .05*

Temic Semiconductor

BA979S-GS08

Beschreibung: RF PIN Diode Datenblatt: BA979S.pdf

€ 0 .05*

Temic Semiconductor

BA982-GS08

Beschreibung: Band Switching Diode Datenblatt: BA982.pdf

€ 0 .05*

Philips

BAP70-03

Silicon PIN Diode VR continuous reverse voltage: 50 V IF continuous forward current: 100 mA Ptot total power dissipation Ts = 90 °C: 500 mW Tstg storage temperature: -65 +150 °C Tj junction temperature: -65 +150 °C High voltage, current controlled RF resistor for attenuators Low diode capacitance Very low series inductance. Datenblatt: BAP70.pdf

€ 0 .05*

Temic Semiconductor

BAQ133-GS08

Beschreibung: Small Signal Switching Diodes, Low Leakage Current Datenblatt: BAQ133.pdf

€ 0 .05*

Infineon

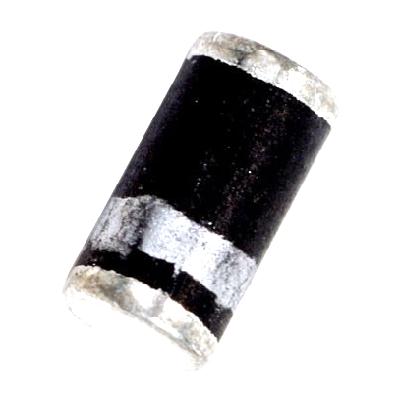

BAR90-02ELS E6327

PIN Diodes Diode Configuration: Single Resistance @ If: 0.8ohm Reverse Voltage: 80V Diode Capacitance: 0.25pF Forward Current: 100mA Operating Temperature Max: 125C Forward Voltage: 1V Power Dissipation: 150mW Datenblatt: BAR90.pdf

€ 0 .06*

Infineon

BB535

Beschreibung: RF Varactor Diode Datenblatt: BB535.pdf

€ 0 .04*

Infineon

BB545-E7904

Silicon Variable Capcitance Diode Capacitance at Vr, F: 2.2pF at 28V, 1MHz Capacitance Ratio: 11 Capacitance Ratio Condition: C1/C28 Voltage - Peak Reverse (Max): 30V Diode Type: Single Operating Temperature TJ: -55C to 150C Datenblatt: BB545.pdf

€ 0 .05*

Siemens

BB555

Beschreibung: Silicon Tuning Diode Datenblatt: BB555.pdf

€ 0 .04*

Siemens

BB619

Beschreibung: Silicon Variable Capacitance Diode Datenblatt: BB619.pdf

€ 0 .10*

Infineon

BB659C

Beschreibung: Silicon Variable Capacitance Diode Datenblatt: BB659C.pdf

€ 0 .05*

Siemens

BB689

Beschreibung: Silicon Tuning Diode Datenblatt: BB689.pdf

€ 0 .10*

Vishay

BB814-1-GS08

Beschreibung: Dual Varicap Diode Datenblatt: BB814.pdf

€ 0 .05*

Philips

BBY31

Beschreibung: UHF Variable Capacitance Diode Datenblatt: BBY31.pdf

€ 0 .05*

IXYS

BPS15-0045B

Beschreibung: Power Schotty-Diode 45V / 15A IFAV = 15A VRRM= 45V VF = 0.42 V Symbol Conditions Maximum Ratings IFAV TC = 135A; rectangular, d = 0.5 15 A IFSM TVJ = 45A; tp = 10 ms (50 Hz), sine 320 A (dv/dt)cr 1000 V/Î¼s TVJ -55...+150 °C TVJM 175 C Tstg -55...+125 °C Ptot TC = 25°C 90 W

€ 4 .00*

Vishay

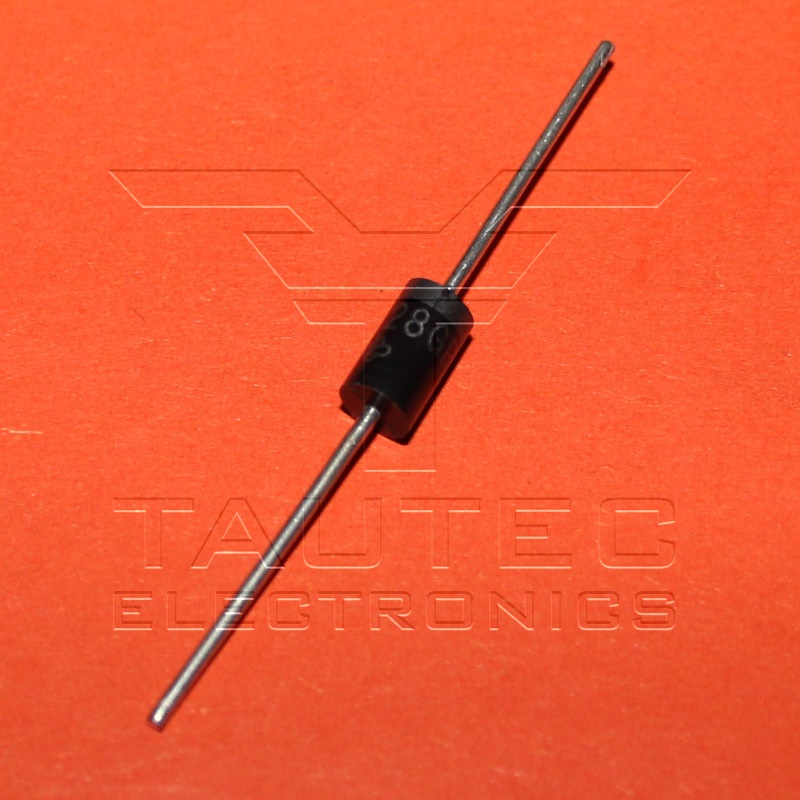

BY228GP-E3/54

Rectifiers 2.5 Amp 150Volt Vr - Reverse Voltage: 1.5 kV If - Forward Current: 2.5 A Type: Fast Recovery Rectifiers Configuration: Single Vf - Forward Voltage: 1.6 V Max Surge Current: 50 A Ir - Reverse Current: 2 uA Recovery Time: 20 us Minimum Operating Temperature: - 65 C Maximum Operating Temperature: + 140 C

€ 0 .98*

Diotec Semiconductor

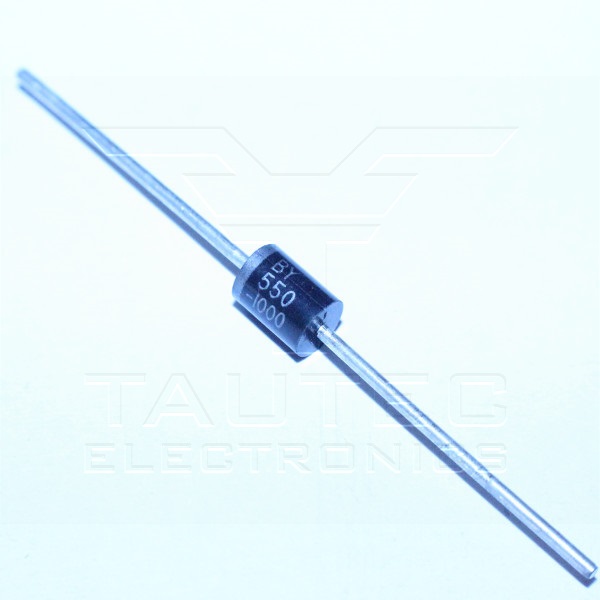

BY550-1000

Silicon Rectifier Diodes 1000V / 5A Max. off-state voltage: 1kV Forward voltage at If: 1V Load current: 5A Max. load current: 44A Case: Ø5,4x7,5mm Reverse recovery time: 1.5µs Max. forward impulse current: 220A Datenblatt: BY550.pdf

€ 0 .10*

Vishay

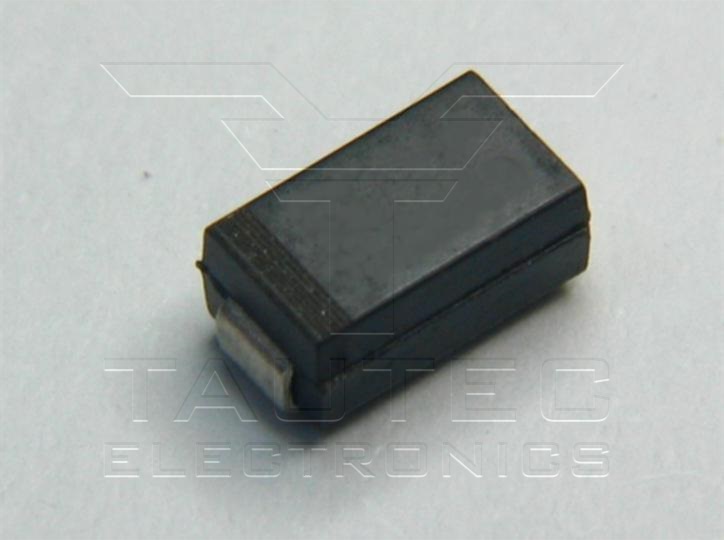

BYG10J-E3/TR3

Beschreibung: Standard Avalanche SMD Rectifier 600V / 1,5A Datenblatt: BYG10J.pdf

€ 0 .05*

Infineon

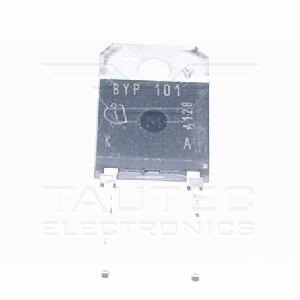

BYP101

Beschreibung: FRED Diode 1000V / 25A Datenblatt: BYP101.pdf

€ 4 .00*

Philips

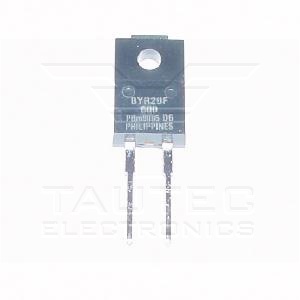

BYR29F-600

Beschreibung: Rectifier diodes ultrafast Datenblatt: BYR29F.pdf

€ 0 .80*

Philips

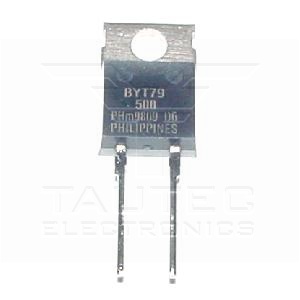

BYT79-500

Rectifier diodes ultrafast 500V / 14A Datenblatt: BYT79.pdf

€ 0 .60*

Telefunken

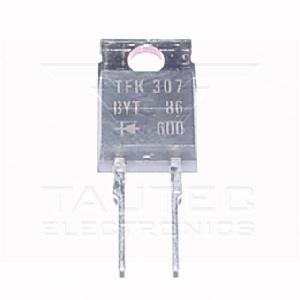

BYT86-600

Ultra Fast Recovery Silicon Power Diode 600V / 8A Datenblatt: BYT86.pdf

€ 3 .00*

ST-Microelectronics

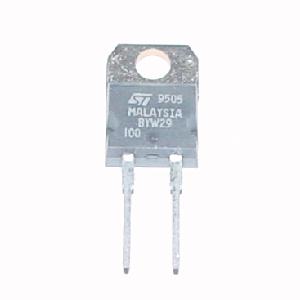

BYW29-100

Ultrafast Rectifier 100V / 8A Datenblatt: BYW29.pdf

€ 0 .40*

ST-Microelectronics

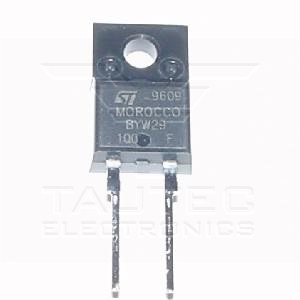

BYW29F-100

Ultrafast Rectifier 100V / 8A Datenblatt: BYW29.pdf

€ 0 .30*

Thomson CSF

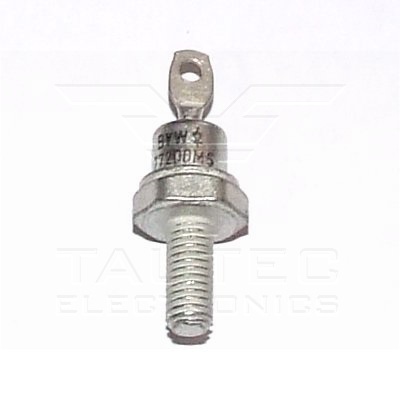

BYW77-200

High Efficiency Fast Recovery Rectifier Diodes 200V / 25A - Vf < 0,85V at 20A - Vrrm = 50V - 200V - If(AV) = 25A at Tc=115 C - trr < 50ns - Prsm = 1,2kW Datenblatt: BYW77.pdf

€ 5 .00*

Philips

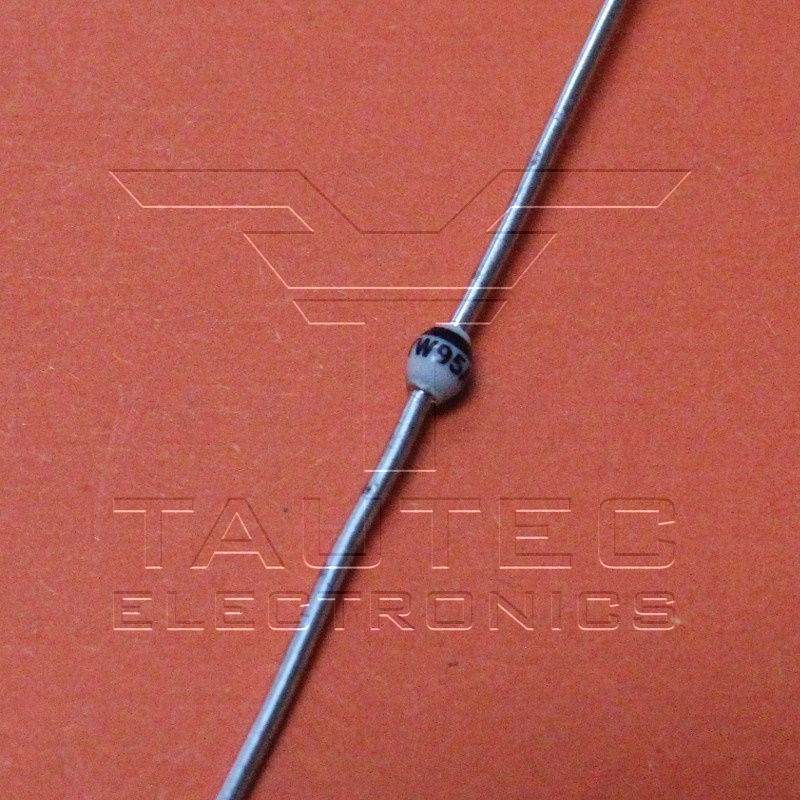

BYW95A

Fast soft-recovery controlled avalanche rectifiers Glass passivated Low leakage current Excellent stability High maximum operating temperature repetitive peak reverse voltage VRRM = 200V continuous reverse voltage VR=200V average forward current IF(AV)= 3.00A repetitive peak forward current IFRM=30A non-repetitive peak forward current IFSM=70A storage temperature Tstg: -65 to +175 Datenblatt: BYW95.pdf

€ 0 .20*

ST-Microelectronics

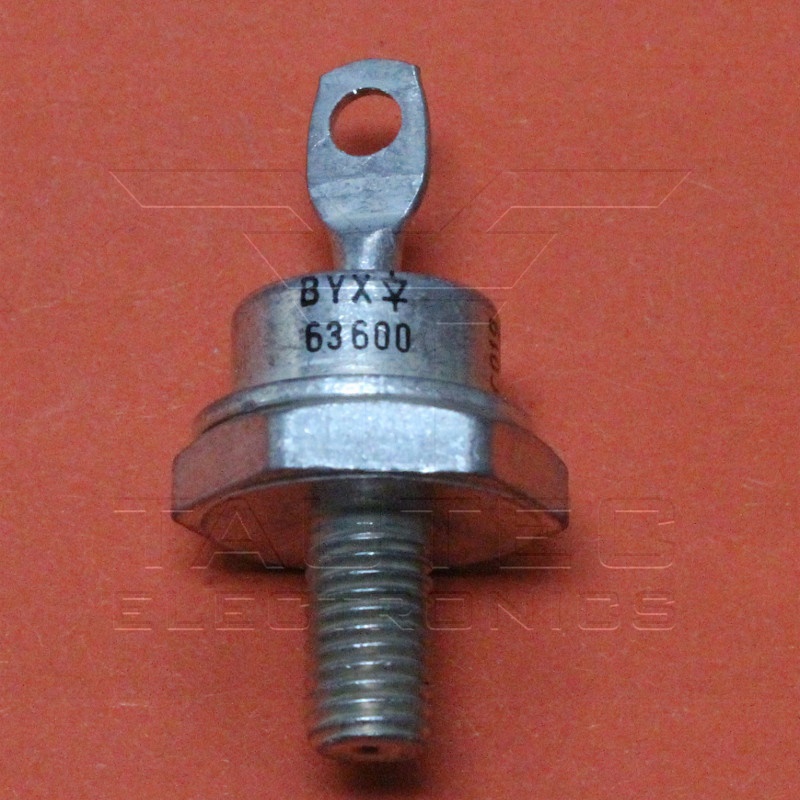

BYX63-600

Description: Fast Recovery Rectifier Diodes 600V / 20A Datenblatt: BYX63-600.pdf

€ 10 .00*

Siemens

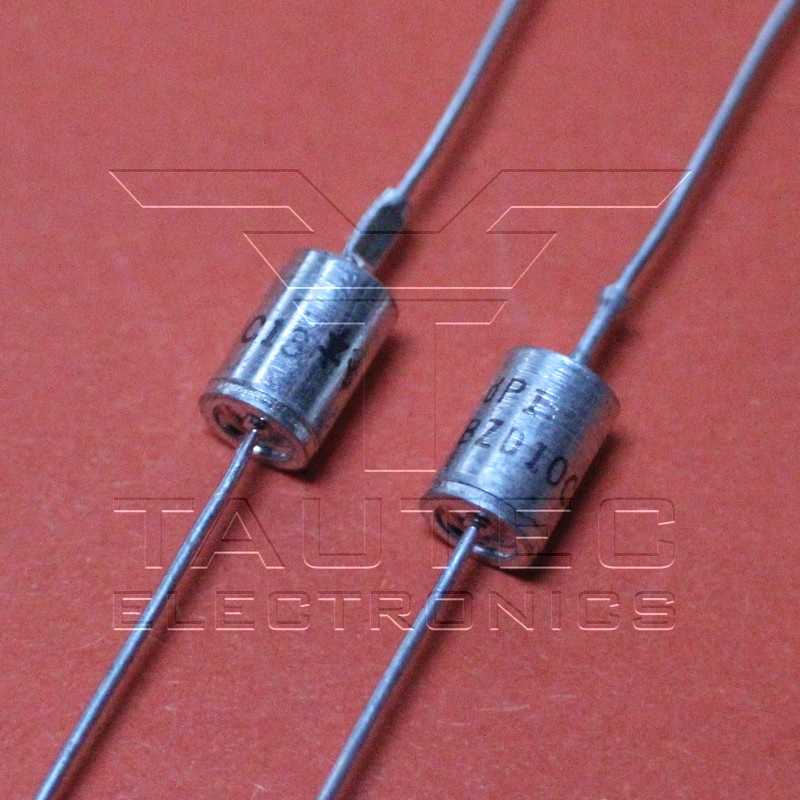

BZD10C13

Power Silicon Z-Diode Zener VoltageUz: 13V Zener current Iz: 64mA Dynamic Impedanze: Zz:

€ 0 .33*
