BAUELEMENTE

0-1393258-3
tyco
0-1393258-3
Safety Relays Coil Voltage: 9 VDC Coil Resistance: 116 Ohms Coil Power: 698mW Relay Contact Form: 2 Form C (DPDT-NO, NC) Contact Termination: Solder Pin Contact Rating: 6 A Maximum Switching Voltage AC: 400V Dimensions 29 x 12.6 x 25.5mm Operating Temperature Range: -25 to +70°C Contact Material Silver Alloy Series: SR2M Datenblatt: V23047.pdf

Ab
€ 5 .00*
0-1419108-1
tyco
0-1419108-1
12VDC Power PCB Relay 250VSC/12A Contact Arrangement: 1 Form C Contact Switching Voltage: 250VAC Contact Limiting Breaking Current: 12A Coil Voltage Rating: 12VDC Coil Magnetic System: Monostable, DC Coil Power Rating Class: 300 – 400mW Coil Power Rating: 400mW Coil Resistance: 360 Ohm Datenblatt: RT114012.pdf

Ab
€ 2 .39*
0-409-07-028-001
EBERLE
0-409-07-028-001
17 -26VDC Power PCB Relay 250VAC/16A Contact Arrangement: 1 Form A Contact Switching Voltage: 250VAC / 380VAC Contact Limiting Breaking Current: 16A / 10A Coil Voltage Rating: 17 - 26VDC Dimension: 28,5mm x 24mm x 12,2mm

Ab
€ 3 .75*
0038001406
Molex
0038001406
KK® 254 PC Board Connector, Bottom Entry, with Cat Ear Terminal, 16 Circuits Connector Type:Receptacle, Bottom Entry umber of Positions: 16 Pitch - Mating: 2.54mm Number of Rows: 1 Mounting Type: Through Hole Termination: Solder Fastening Type: Push-Pull Contact Finish - Mating: Tin Contact Finish Thickness - Mating: 2.54um Insulation Color: White Insulation Height: 7.90mm Contact Length - Post: 3.60mm Operating Temperature: -40C to 105C Material Flammability Rating: UL94 V-0 Datenblatt: 0038001406.pdf

Ab
€ 0 .60*

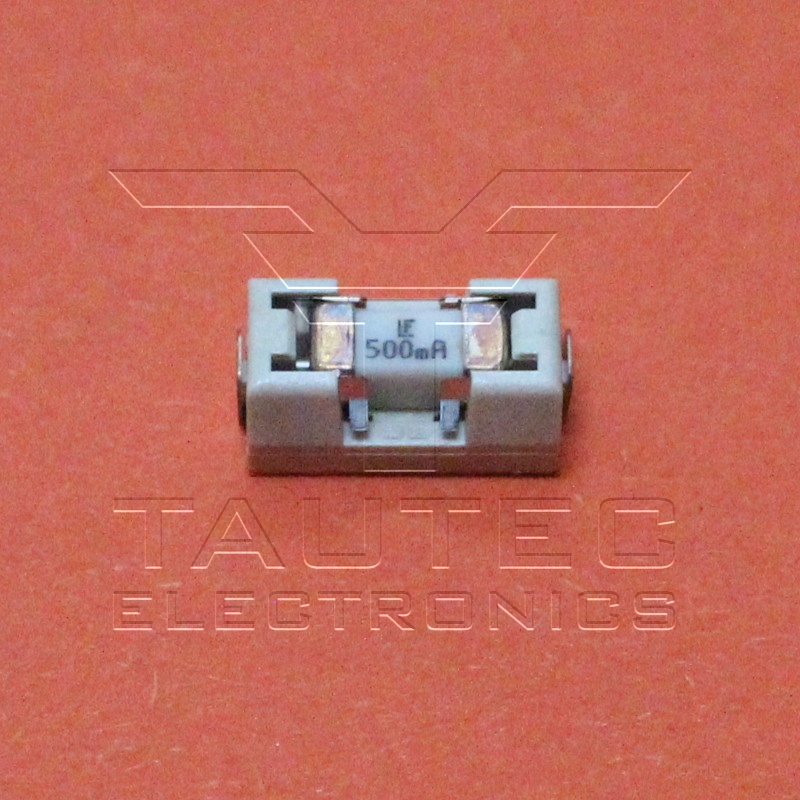

0154.500DR
Littlefuse
0154.500DR
Surface Mount Fuses Fuseblock Fuse Type: Fast Blow Current Rating: 500 mA Voltage Rating AC: 125 VAC Voltage Rating DC: 125 VDC Interrupt Rating: 50 A at 125 VAC, 50 A at 125 VDC Fuse Size/Group: 9.73 mm x 5.03 mm Minimum Operating Temperature: - 55 C Maximum Operating Temperature: + 125 C Datenblatt: 0154.500DR.pdf

Ab
€ 0 .88*

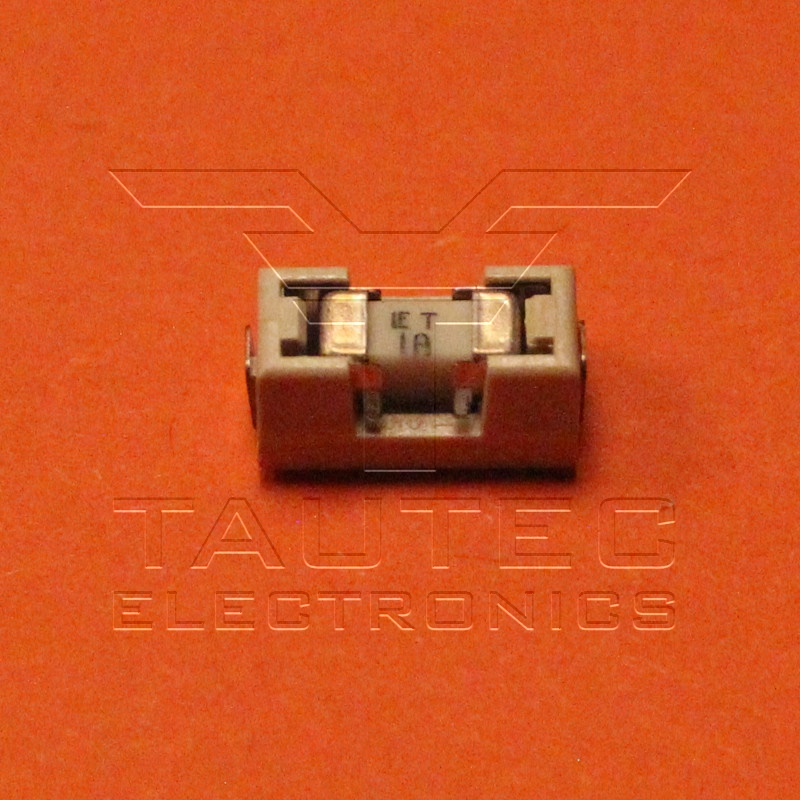

0154001.DRT
Littlefuse
0154001.DRT
Surface Mount Fuses Fuseblock Fuse Type: Slow Blow Current Rating: 1A Voltage Rating AC: 125 VAC Voltage Rating DC: 125 VDC Interrupt Rating: 50 A at 125 VAC, 50 A at 125 VDC Fuse Size/Group: 9.73 mm x 5.03 mm Minimum Operating Temperature: - 55 C Maximum Operating Temperature: + 125 C Datenblatt: 0154001.DRT.pdf

Ab
€ 0 .92*
0410 83 050 001 WG
Schrack
0410 83 050 001 WG
Power Relay 12VDC - 250VAC/16A TE Part number: 8-1415536-7 - 1 pole 16 A, 1 NO bridging contact - Contact gap > 3 mm - Switching capacity 4000 VA - Coil power 360 mW - 4 kV / 8 mm coil-contact, insulation to VDE 0631 and 0700 - Ambient temperature up to 85°C - Quick connect terminals for load side Datenblatt: 0410.pdf

€ 9 .00*
0430450809
Molex
0430450809
Headers & Wire Housings MICRO-FIT 3.0 Number of Positions: 8 Position Pitch: 3 mm Number of Rows: 2 Row Mounting Style: SMD Mounting Angle: Right Angle Contact Gender: Pin (Male) Contact Plating: Tin Current Rating: 8.5 A Housing Material: Thermoplastic Voltage Rating: 600 V Flammability Rating: UL 94 V-0 Row Spacing: 3 mm Minimum Operating Temperature: - 40 C Maximum Operating Temperature: + 105 C Datenblatt: 0430450809.pdf

Ab
€ 1 .00*
0430451018
Molex
0430451018
Beschreibung: Micro-Fit 3.0™ Vertical Header, 3.00mm Pitch, Dual Row, 10 Circuits, with Solder Tab, Tin, Glow Wire Compliant, Black Datenblatt: 0430451018.pdf

€ 1 .25*
0430451218
Molex
0430451218
Beschreibung: Micro-Fit 3.0™ Vertical Header, 3.00mm Pitch, Dual Row, 12 Circuits, with Solder Tab, Tin, Glow Wire Compliant, Black Datenblatt: 0430451218.pdf

€ 1 .25*
0430451609
Molex
0430451609
Micro-Fit 3.0™ Right Angle Header, 3.00mm Pitch, Dual Row, 16 Circuits, with Solder Tab, Tin, Glow Wire Compliant, Black Number of Positions: 16 Position Pitch: 3 mm Current Rating: 8.5 A Voltage Rating: 600 V Flammability Rating: UL 94 V-0 Row Spacing: 3 mm Number of Rows: 2 Row Mounting Style: SMD Mounting Angle: Right Angle Contact Gender: Pin (Male) Contact Plating: Tin Series: 43045 Minimum Operating Temperature: - 40 C Maximum Operating Temperature: + 105 C Datenblatt: 0430451609.pdf

Ab
€ 1 .15*
052207-0485
Molex
052207-0485
FFC & FPC Connectors 1.0MM FFC/FPC 4 - Product: Board Mount - Number of Positions: 4 Position - Pitch: 1 mm - Termination Style: SMD/SMT - Mounting Angle: Right Angle - Contact Location: Top Contact - Contact Plating: Tin Bismuth - Current Rating: 1 A - Housing Material: Polyamide (PA) - Voltage Rating: 125 V Datenblatt: 0522070485.pdf

Ab
€ 0 .55*
052207-1085
Molex
052207-1085
FFC/FPC Connector, Right-Angle, Surface Mount, ZIF, Top Contact Style Receptacle, 10 Circuits, High Barrier Packaging - Circuits (Loaded): 10 - Color - Resin: Natural - Contact Position: Top - Durability (mating cycles max): 30 - Entry Angle: 90° Angle - Flammability: 94V-0 - Mated Height: 2.70mm - Material - Metal Phosphor: Bronze - Material - Plating Mating: Tin-Bismuth - Material - Plating Termination: Tin-Bismuth - Material - Resin Nylon - Net Weight: 429.600/mg - Voltage Rating: 125 V Datenblatt: 0522071085.pdf

Ab
€ 0 .55*
052207-2485
Molex
052207-2485
Datenblatt: 0522072485.pdf

Ab
€ 0 .80*
052610-1671
Molex
052610-1671
FFC & FPC Connectors 1.0MM FFC/FPC 16 CKT Vert. SMT ZIF - Number of Positions: 16 Position - Pitch: 1 mm - Termination Style: SMD - Mounting Angle: Vertical - Contact Plating: Tin-Bismuth over Nickel - Current Rating: 1 A - Gender: Female - Housing Material: Nylon - Voltage Rating: 125 V - Contact Material: Phosphor Bronze Datenblatt: 0526101671.pdf

Ab
€ 0 .70*
052793-2470
Molex
052793-2470
FFC/FPC Connector SKT 24 POS 1mm - Product: Board Mount - Number of Positions: 24 Position - Pitch: 1 mm - Termination Style: SMD - Mounting Angle: Right Angle - Contact Location: Top Contact - Contact Plating: Tin Bismuth - Current Rating: 500 mA - Housing Material: Polyphenylene Sulfide (PPS) - Voltage Rating: 50 V - Contact Material: Phosphor Bronze Datenblatt: 0527932470.pdf

Ab
€ 0 .40*
053261-0871
Molex
053261-0871
WIRE-BOARD CONNECTOR HEADER 8 POSITION - Product: Headers - Type: Shrouded - Number of Positions: 8 Position - Pitch: 1.25 mm - Number of Rows: 1 Row - Mounting Style: SMD - Termination Style: SMD/SMT - Mounting Angle: Right Angle - Contact Gender: Pin (Male) - Contact Plating: Tin - Current Rating: 1 A - Housing Material: Thermoplastic - Voltage Rating: 125 V Datenblatt: 0532610871.pdf

Ab
€ 0 .40*
06035A110CAT2A
AVX Corporation
06035A110CAT2A
Karamikkondensator 11pF / 50V / +-2% Datenblatt: 06035A6R2CAT2A.pdf

Ab
€ 0 .02*
06035A6R2CAT2A
AVX Corporation
06035A6R2CAT2A
Beschreibung: Karamikkondensator 6,2pF / 50V / +-0,25pF Datenblatt: 06035A6R2CAT2A.pdf

Ab
€ 0 .01*
0603Y0160152FCT
Knowless
0603Y0160152FCT
Multilayer Ceramic Capacitors Capacitance: 1500 pF Voltage Rating DC: 16 VDC Dielectric: C0G (NP0) Tolerance: 1 % Case Code - in: 0603 Case Code - mm: 1608 Height: 0.8 mm Minimum Operating Temperature: - 55 C Maximum Operating Temperature: + 125 C

€ 1 .00*
0705430004
Molex
0705430004
Connector Shrouded Header Product: Headers Type: Shrouded Number of Positions: 5 Position Pitch: 2.54 mm (0.1 in) Number of Rows: 1 Row Mounting Style: Panel Mount Termination Style: Solder Pin Mounting Angle: Straight Contact Gender: Pin (Male) Contact Plating: Gold Series: 70543 Tradename: SL Minimum Operating Temperature: - 40 C Maximum Operating Temperature: + 105 C Datenblatt: 0705430004.pdf

Ab
€ 0 .92*
0734151064
Molex
0734151064
RF Connectors / Coaxial Connectors MCX RF Series: MCX Gender: Jack (Female) Impedance: 50 Ohms Maximum Frequency: 6 GHz Termination Style: Solder Cable Type: RD-316 Packaging: Tray Contact Plating: Gold Body Finish: Gold Datenblatt: 0734151064.pdf

Ab
€ 1 .25*
086210025340800A+
Kyocera Connector Products Corporation
086210025340800A+
Beschreibung: FFC/FPC Connector SKT 25 POS 0.5mm Solder RA SMD Datenblatt: 086210025340800A+.pdf

Ab
€ 0 .30*
09-0324-90-06
Franz Bider GmbH&Co KG
09-0324-90-06
Circular connectors, Screw locking, Solder pin, straight, Female contact Version: Socket Type of locking: Screw lock Voltage Rating: 250V Current Rating (Max): 5A Assembly: PCB mounting Pin number: 6-pole Orientation: straight Contact connection: Solder pin Cable cross-section: 0.75 mm² Cable diameter: 3 to 6 mm Shell Material: Zinc Die Casting Datenblatt: 09-0412-30-04.pdf

Ab
€ 3 .70*
09-3432-92-04
Franz Bider GmbH&Co KG
09-3432-92-04
M12 Female panel mount connector, Contacts: 4, unshielded, THT, IP68, PG 9, front fastened Connector design: Female panel mount connector Type standard: DIN EN 61076-2-101 Version: Connector socket straight Connector locking system: screw Termination: THT Degree of protection: IP68 Temperature range from/to: -40 C / +85 C Mechanical operation: > 100 Mating cycles Weight: 12.52g Country of Origin: DE Datenblatt: 0934329204.pdf

Ab
€ 7 .40*
09031966921
Harting Technology Group
09031966921
Beschreibung: DIN-Signal C096MS-3,0C1-2, male, solder, 96pole Datenblatt: 09031966921.pdf

€ 2 .00*
09061326931
Harting Technology Group
09061326931
Connector DIN 41612 M 32 POS 5.08mm - Number of Positions: 32 Position - Number of Rows: 3 Row - Pitch: 5.08 mm - Type: F - Termination Style: Solder Pin - Mounting Angle: Right - Contact Plating: Nickel - Contact Material: Copper Alloy - Series: DIN-Power F Datenblatt: 09061326931.pdf

Ab
€ 2 .25*
09185265329
Harting Technology Group
09185265329
Connector Header Through Hole Connector Type: Header Contact Type: Male Pin Pitch - Mating: 0.100" (2.54mm) Number of Positions: 26 Number of Rows: 2 Row Spacing - Mating: 0.100" (2.54mm) Mounting Type: Through Hole Termination: Press-Fit, Solder Fastening Type: Push-Pull Contact Length - Mating: 0.240" (6.10mm) Contact Length - Post: 0.217" (5.51mm) Insulation Height: 0.350" (8.89mm) Contact Shape: Square Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 30.0µin (0.76µm) Contact Finish - Post: Tin Contact Material: Copper Alloy Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled Features: Keying Slot Datenblatt: 09185265329.pdf

Ab
€ 2 .75*
09200031640
Harting Technology Group
09200031640
HAN3A Tüllengehäuse, PG11, seitlich, grau, abgewinkelt Datenblatt: HAN3A-GW-PG11.pdf

Ab
€ 2 .75*
093.63
FINDER S.p.A.
093.63
Fuse Module Series: Finder 39... Color: grey/blue Fuse type: 5x20mm Datenblatt: 093.63.pdf

€ 2 .50*
094.91.3
FINDER S.p.A.
094.91.3
Type of relays accessories: retainer/retractor clip Application: 94.02, 94.03, 94.04, 96.02 Relay series: 55.32, 55.33, 55.34 Datenblatt: 094.91.3.pdf

€ 0 .65*

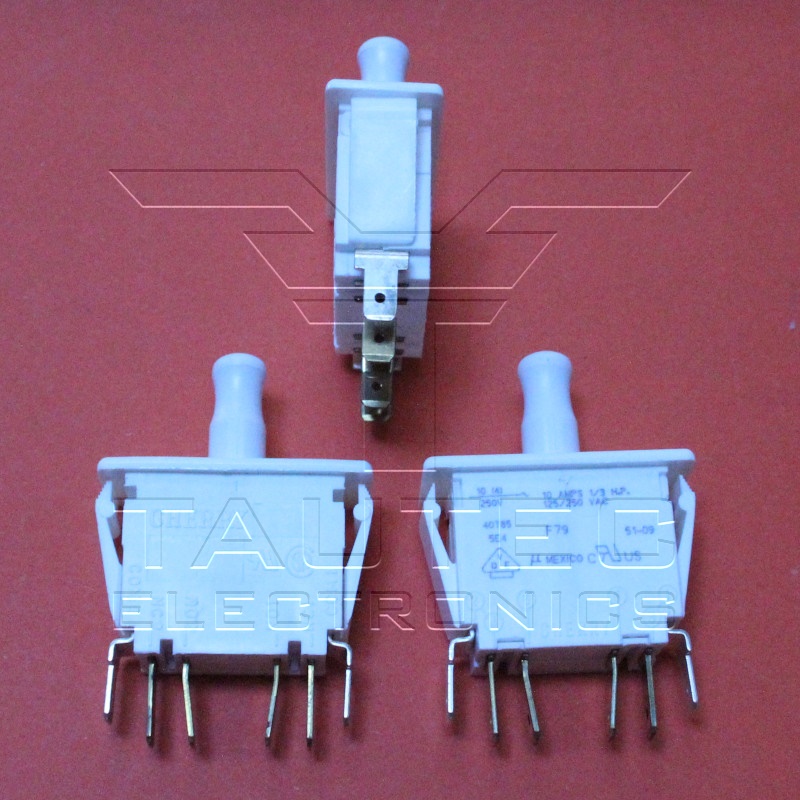

0F7930A0
ZF Electronics Systems
0F7930A0
Pushbutton Switches Illuminated: Non-Illuminated Contact Form: DPDT Mounting Style: Panel Mount Switch Function: ON - OFF Actuator: Round Current Rating: 10 A Voltage Rating AC: 250 VAC Termination Style: Quick Connect Contact Plating: Silver Actuator Style: Round Datenblatt: 0F7930A0.pdf

Ab
€ 3 .50*

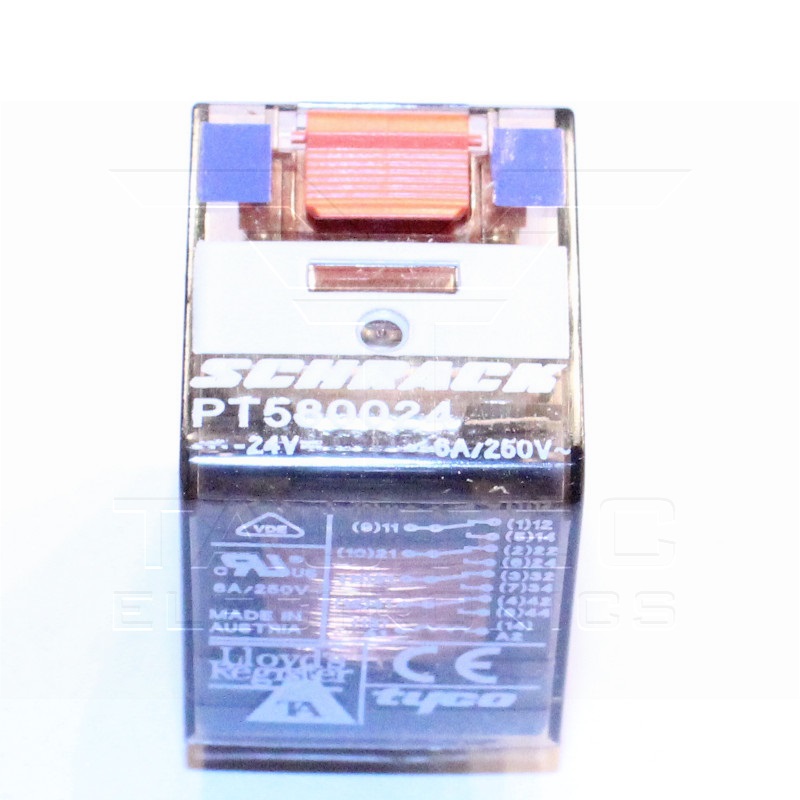

1-1393154-7
tyco
1-1393154-7
24VDC Industrial Relay, 777Ohm, 4PDT, 250VAC/6A Product: Cube Relays Relay Contact Form: 4 Form C (4PDT-NO, NC) Contact Termination: Quick Connect Terminal Coil Termination: Quick Connect Terminal Mounting Style: Socket Switching Voltage: 240 VAC Contact Current Rating: 6 A Coil Type: Non-Latching Coil Voltage: 24 VDC Coil Resistance: 777 Ohms Power Consumption: 741 mW Contact Material: Silver Nickel (AgNi) Length: 28 mm Width: 22.5 mm Height: 29 mm Datenblatt: PT580024.pdf

Ab
€ 4 .00*

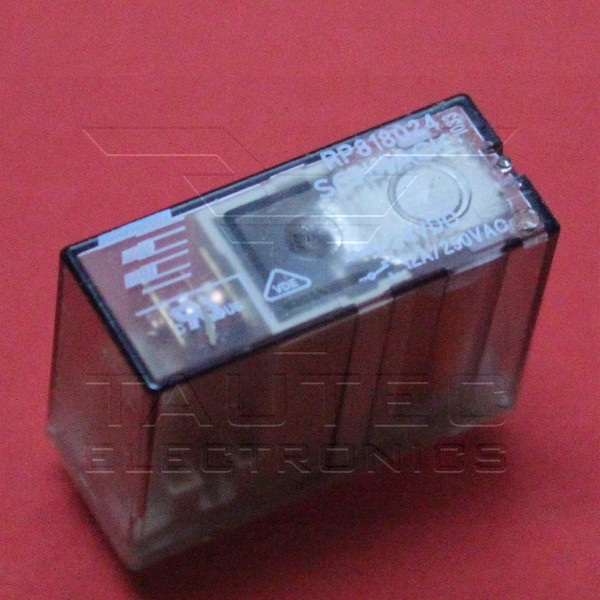

1-1393232-9
tyco
1-1393232-9
Beschreibung: 24VDC Power PCB Relay RPII/1 250VAC/8A - Schrack Artikelnummer: RP818024 Datenblatt: RP818024.pdf

Ab
€ 2 .50*

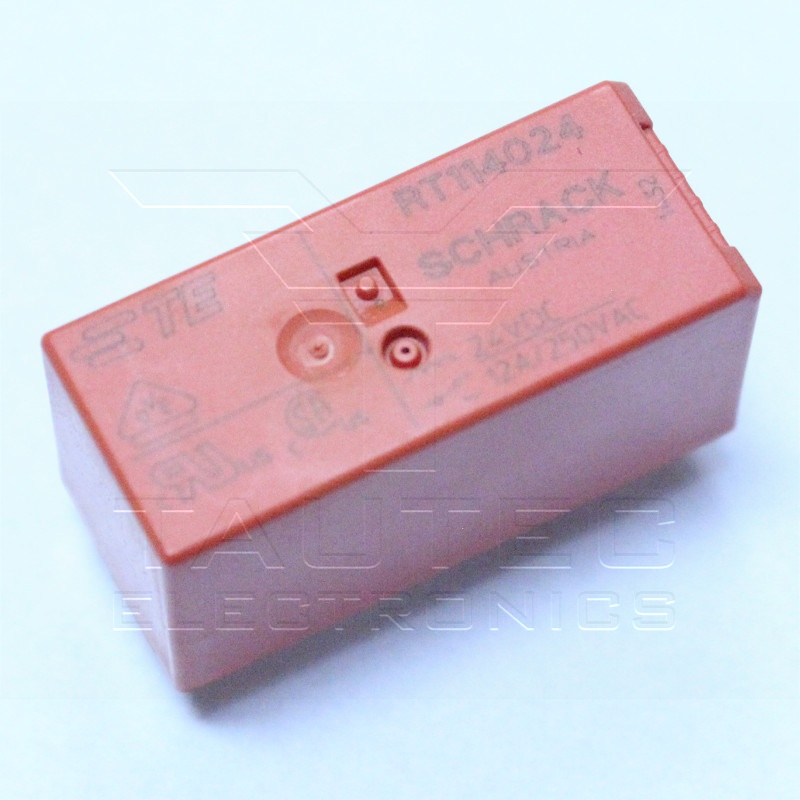

1-1393239-3
TE Tyco Electronics
1-1393239-3
24VDC Power PCB Relay 250VAC/12A Datenblatt: RT114024.pdf

€ 1 .44*

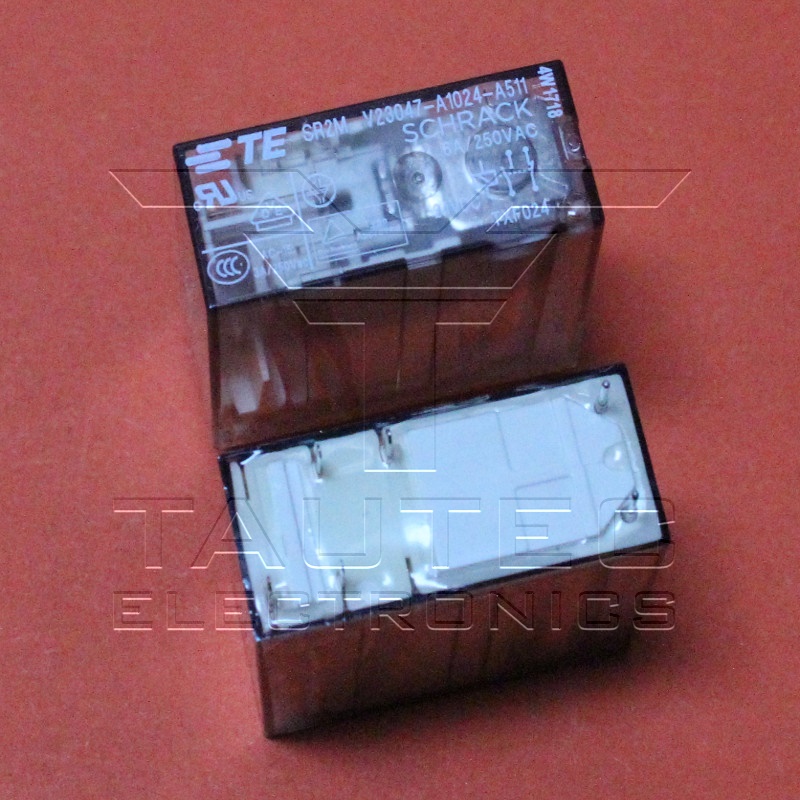

1-1393258-7
TE Tyco Electronics
1-1393258-7
General Purpose Relays Switching Voltage: 400VAC - Max Current Rating: 6 A Relay Contact Form: 1 Form A (SPST-NO), 1 Form B (SPST-NC) Contact Termination: Solder Pin Coil Voltage: 24 VDC Coil Current: 29,2mA Coil Power: 700mW Coil Resistance: 823 Ohms Contact Material Silver Nickel (AgNi) Operating Temperature: -25C to 70C Datenblatt: V23047A1024A511.pdf

Ab
€ 7 .03*

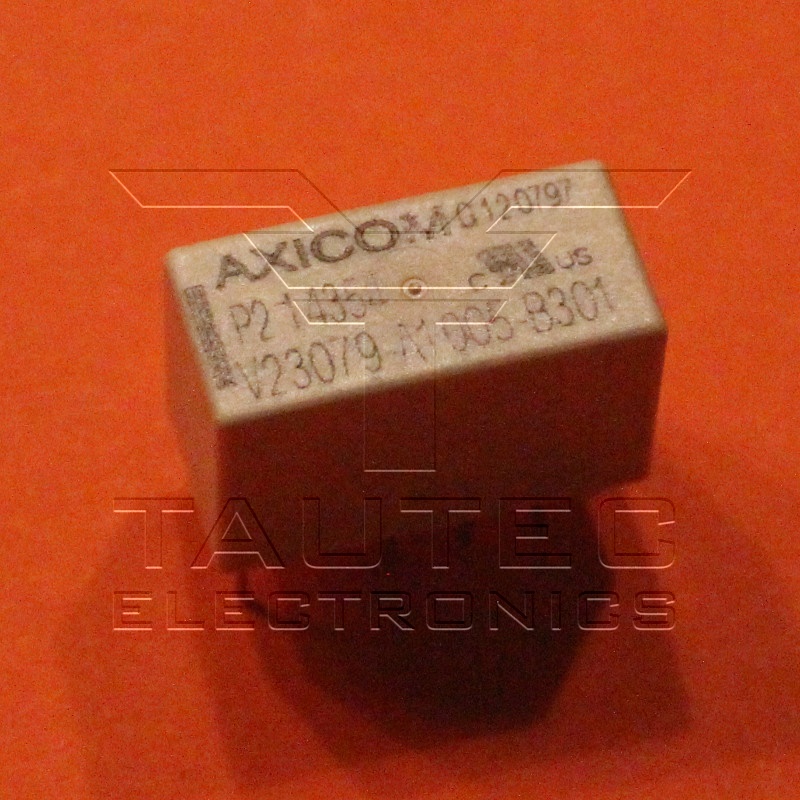

1-1393788-6
TE Tyco Electronics
1-1393788-6
Low Signal Relays Coil Voltage: 24 VDC Relay Contact Form: 2 Form C (DPDT-NO, NC) Contact Rating: 2 A Contact Current Rating: 2 A Maximum Switching Current: 5 A Coil Type: Non-Latching Power Consumption: 140 mW Contact Termination: Solder Pin Isolation: 20.7 dB Insertion Loss: 0.27 dB Coil Resistance: 4.114 kOhms Contact Material: Silver Nickel (AgNi) with Gold Plating Datenblatt: V23079.pdf

Ab
€ 0 .75*

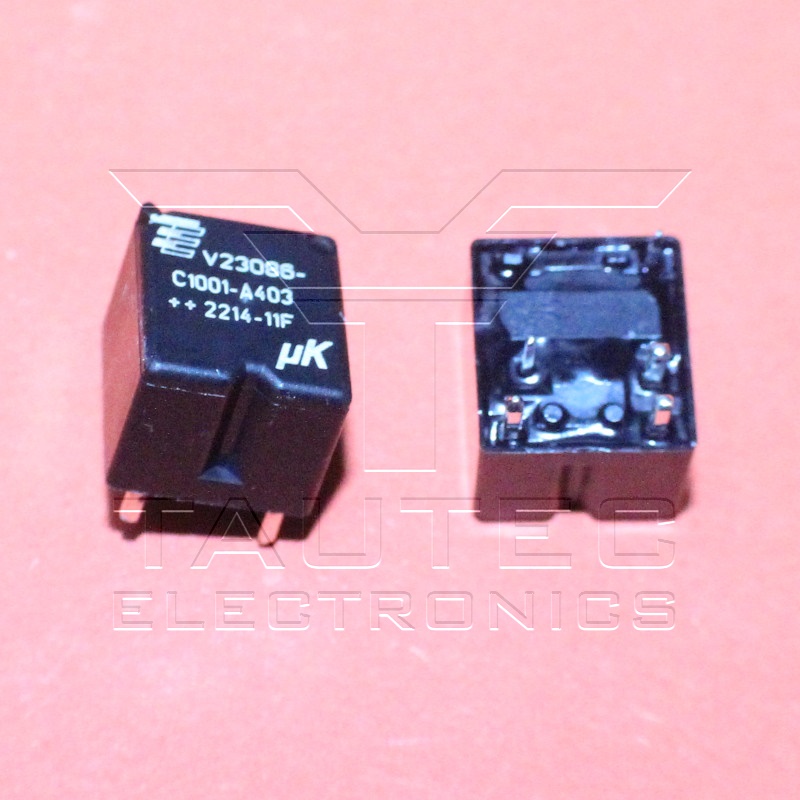

1-1414761-0
TE Tyco Electronics
1-1414761-0
12VDC PC Board Relay for Automotive Applications Coil Voltage: 12 VDC Coil Current: 47.24mA Coil Resistance: 254 Ohm Coil Power: 567mW Contact Rating: 30 A Switching Voltage: 12VDC - Nom Relay Contact Form: 1 Form C (SPDT-NO, NC) Mounting Style: PCB Mount Contact Material: Silver Tin (AgSn) Datenblatt: V23086.pdf

Ab
€ 1 .60*
1-1437561-1
TE Tyco Electronics
1-1437561-1
Ick washer Diameter: 0.19 Thread Finish: zinc Product key: 11098 Datenblatt: 1-1437561-1.pdf

Ab
€ 0 .22*
1-1437561-2
TE Tyco Electronics
1-1437561-2
Hex Nut Diameter: 48mm Thread Finish: bright nickel Product key: 11106-AG Datenblatt: 1-1437561-2.pdf

Ab
€ 0 .22*
